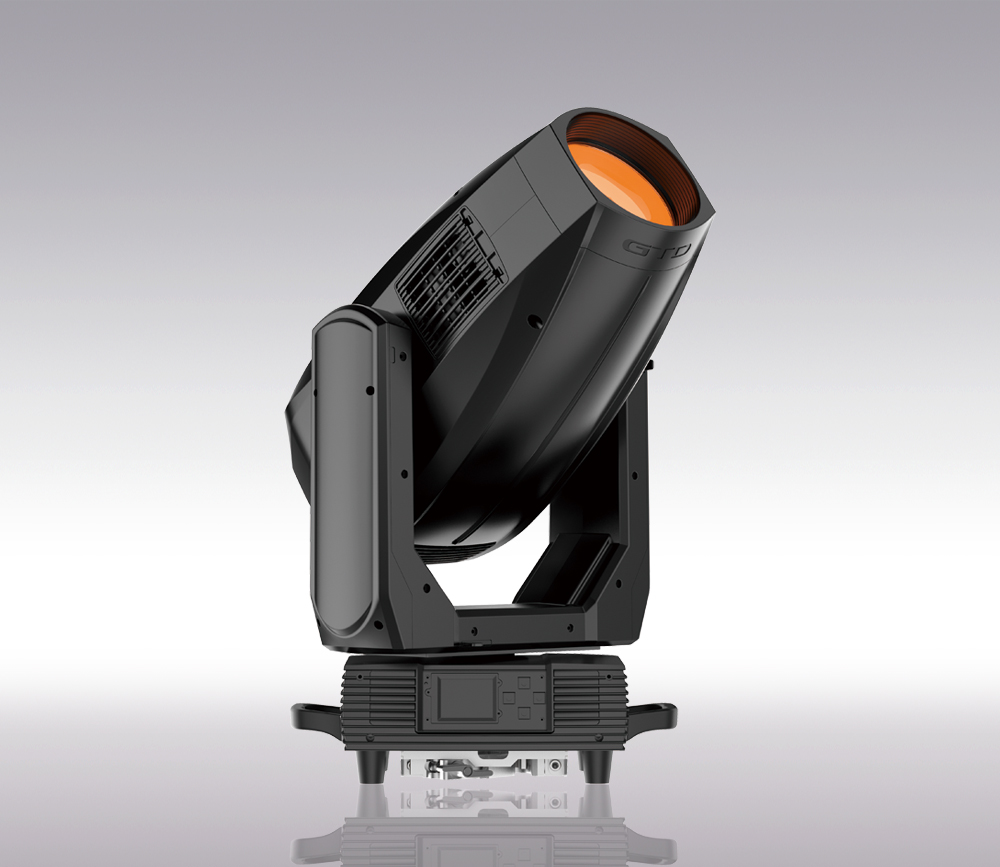

Product Model
GTD-LM1000 N BSWP
Product Series
Moving Head Series
Technical Specification

Optical
Light source: LED 730W
Expected average lifetime: 20000 hours
Color temperature correction: 6500K
Lumens: large angle: 38000 lm
Zoom range: 6°~45° linear high speed zoom, the spot is uniform and consistent in any range
CRI: ≥90
Focus: High precision glass lens, electron linear focus
Prism: 1 four-prism
Frost: 1-independent frost effect

Gobo

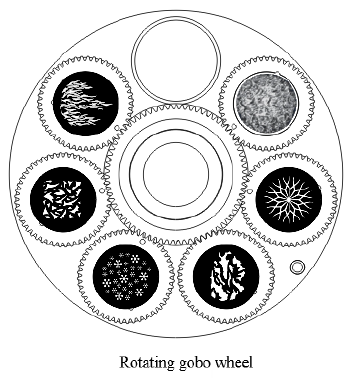

Rotating gobo wheel: 1 interchangeable gobo rotator, 6 optional pattern pieces

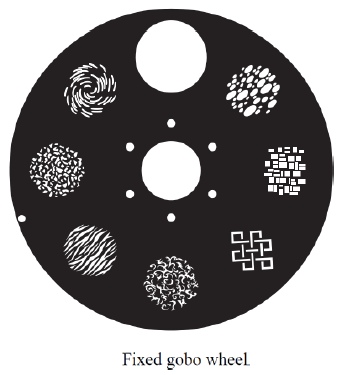

Fixed gobo wheel: 1 fixed gobos + 7 pattern pieces + open, CW/CCW rotation, variable speed
Gobo outside diameter: 27 mm
Max. Image diameter: 22 mm
Max Thickness: 3.5 mm
Gobo material: High-temperature coated glass

Color

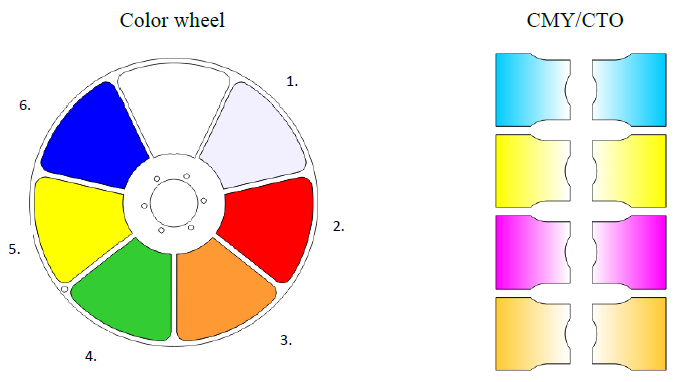

Color wheel: 6 color gel and open gobo, “Rainbow effect” in both directions
CMY: Infinite color mixed
CTO: 6500K-2700K

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 1107W
Max current: 11.15A, PF: 0.99
Main fuse: 250V/15A
Power input: Self-contained power cord
DMX data input/output: Chassis 3-pin

Control and programming
Control channels (DMX): 36/33/52
Protocol: DMX-512 RDM
Display: OLED

Physical / Installation
Weight: 36.5 kg(80.5 lbs.)

IP rating: IP20
Material: Aluminum, copper, steel, plastic, iron
Mounting points: 4 fixed folding lamp hook + attachment points for safety wire

Dynamic effects
Pan/Tilt movement: 540˚/270˚, adopting a function which resets 32 bit accurately and automatically
Strobe: 1-20Hz
Dimmer: 0-100%, mechanical linear dimming

Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: -13˚F
- 113˚F(-25˚C - 45˚C)
Storage range: -39.9˚F
- 140˚F( -40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-20
08

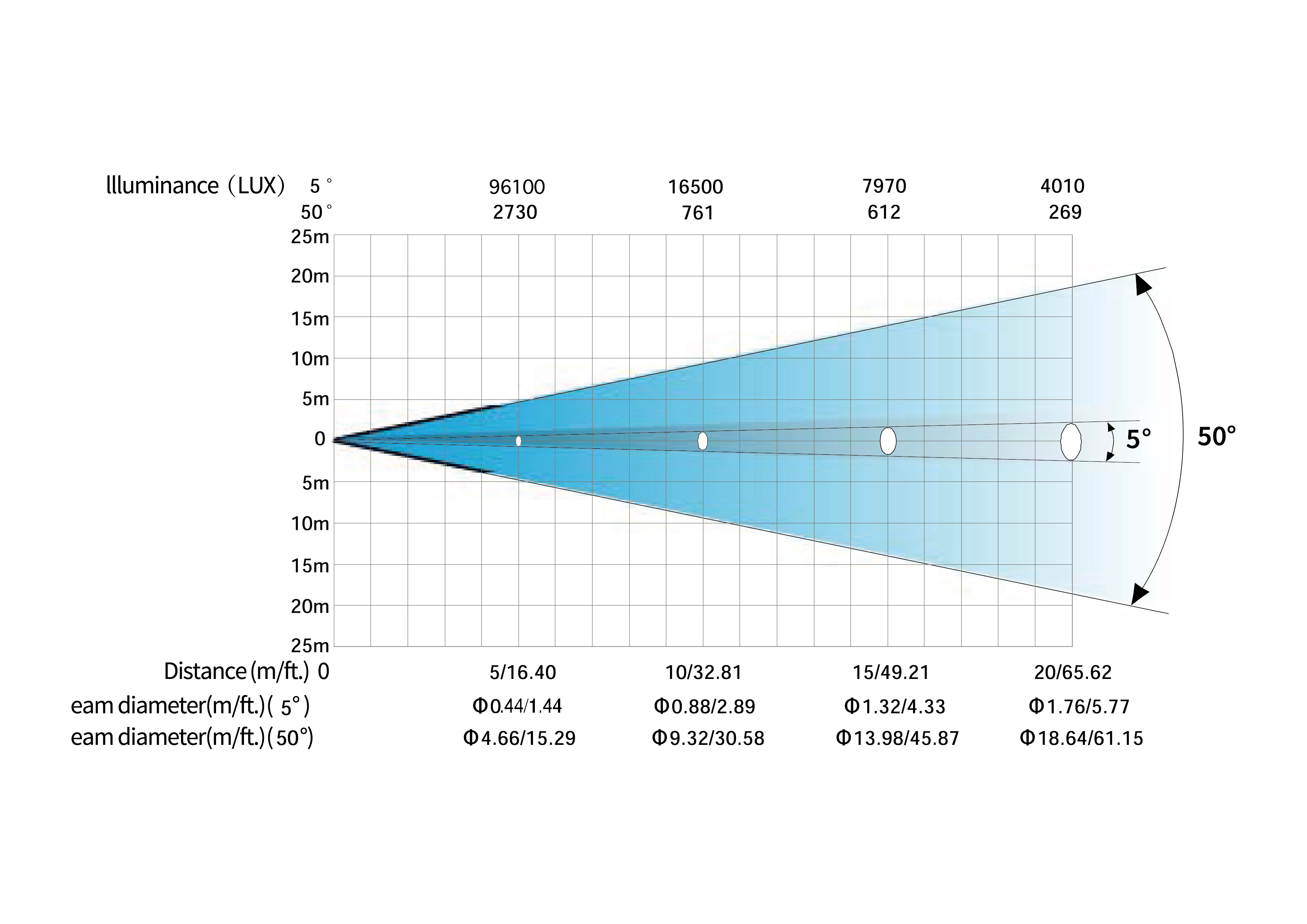

Photometric Diagram

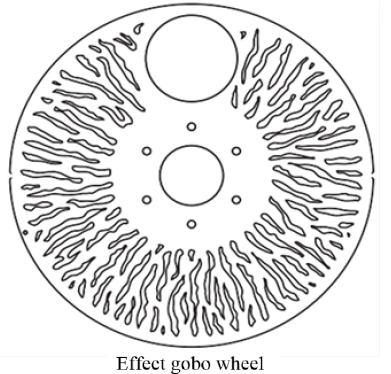

Gobos & Colours

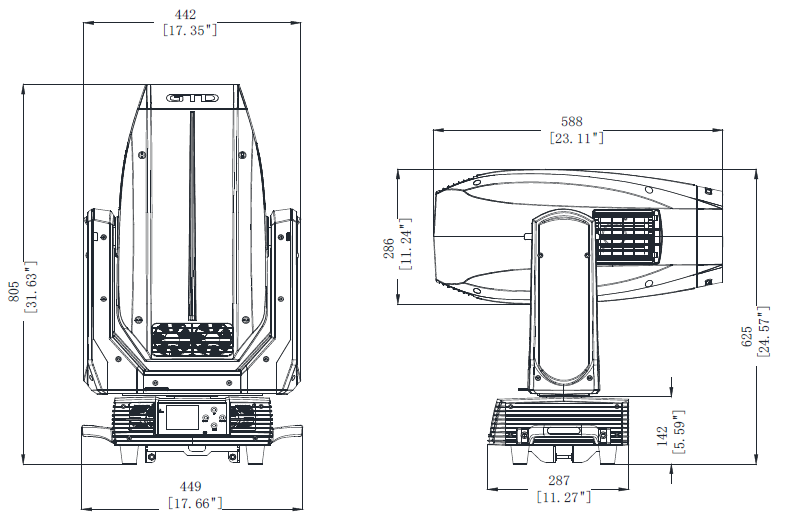

Exterior Dimensions
