Product Model

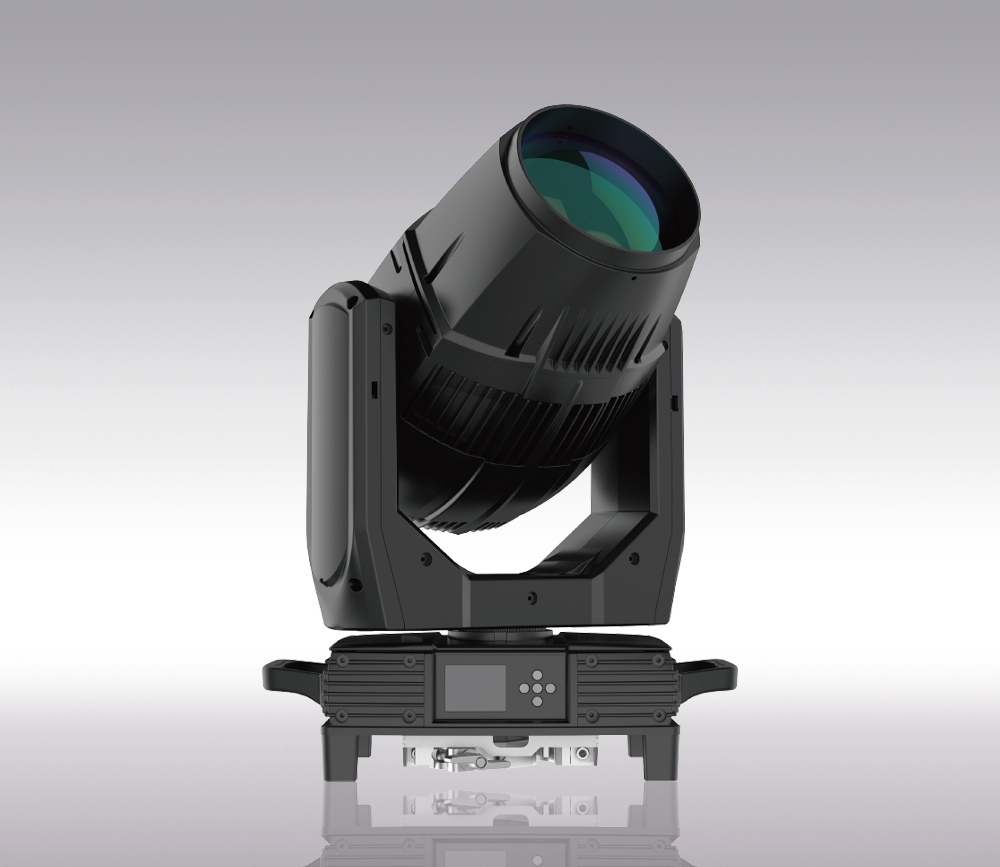

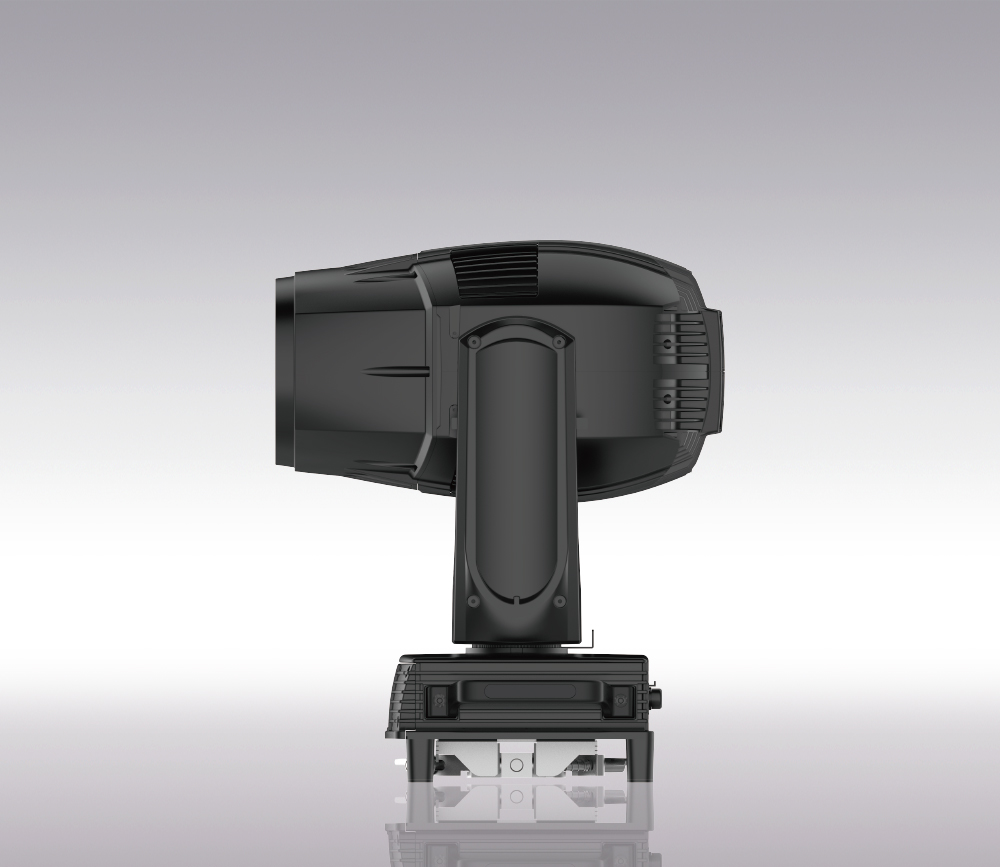

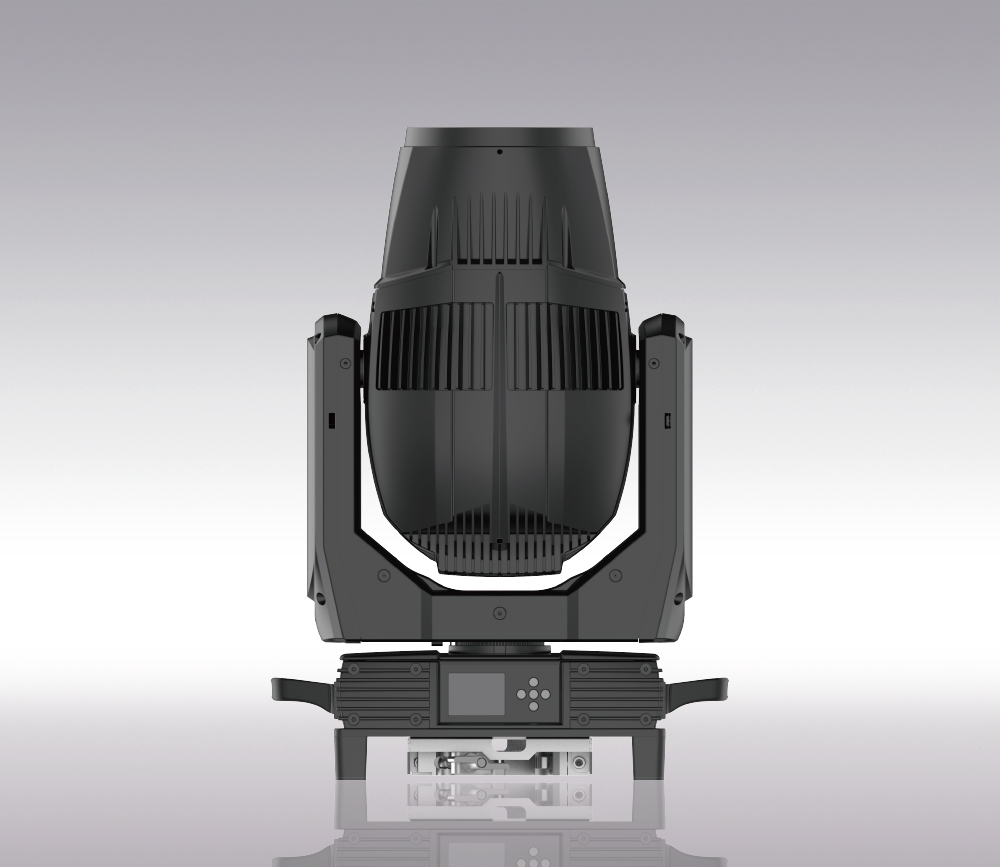

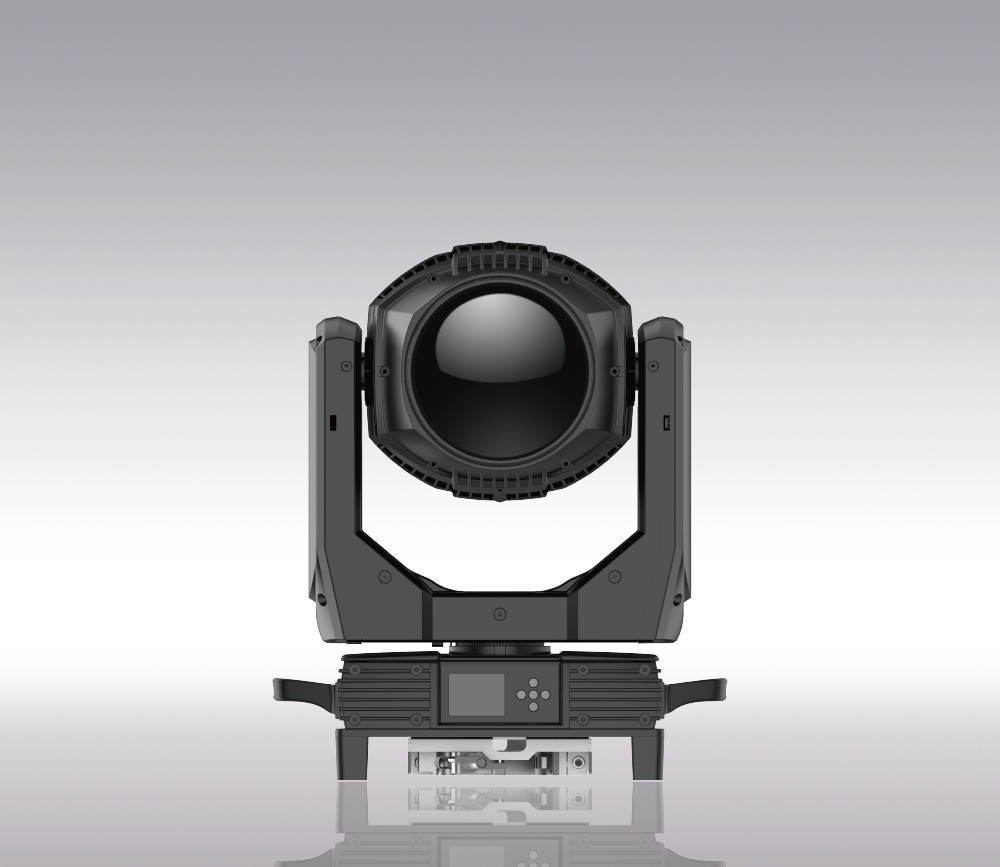

GTD-F4 II Beam
Product Series
IP66 Series
Technical Specification
Optical
Light source: OSRAM SIRIUS HRI 461W
Expected average lifetime: 1500 hours
Beam angle: Zoom range 0° - 1.9°
Focus: Variable range, from 5m to infinity
Prism: One tip 8-facet prism, one flat 8-facet prism, one spherical prism, one 4-facet  prism, one linear prism, can control the effect independently, 2 prism combination can produce concentric circle effect
Ballast: Electronic
Frost: 1-independent frost effect
Total Output (Lumen): 13000 lm
Color temperature: 7500K
CRI: ≥78

Gobo
Rotating gobo: 8 interchangeable gobos, CW/CCW rotation, variable speed
Static gobo wheel: 7 gobos + 2 animation gobos + open, variable speed
Gobo outside diameter: 18 mm
Max. Image diameter: 7 mm
Max. Thickness: 0.5 mm(metal)
Glass/Metal gobo: High temperature resistant metal

Color
Color wheel 14 colors + open, linear color shifing, split color and "Rainbow effect”

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 680W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/10A

Control and programming
Control channels (DMX): 19/17/22
Protocol: DMX-512 RDM
Display: OLED display
16-bit control: Dimmer, colors, CMY, CTO, focus, zoom, pan/tilt, gobo indexing & rotation

Dynamic effects
Pan/Tilt movement: 540˚/270˚
Strobe: High speed strobe, 1-20Hz random strobe, pulse strobe from slow to fast, synchronous and asynchronous strobe
Dimmer: 0-100% mechanical dimming
Zoom: Motorized
Built-in macros: Prism


Physical / Installation
Weight: 44 kg(97 lbs.)
IP rating: IP66
Material: Aluminium, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.21 ft.)

Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Heat pipe radiator, temperature controls fan heat dissipation intelligently

Connections
AC power: Seetronic
power socket
DMX data input/output: 4.92 ft.(1.5 m) cable with 3-pin XLR (in/out)

Certification and Safety
EMC:EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008

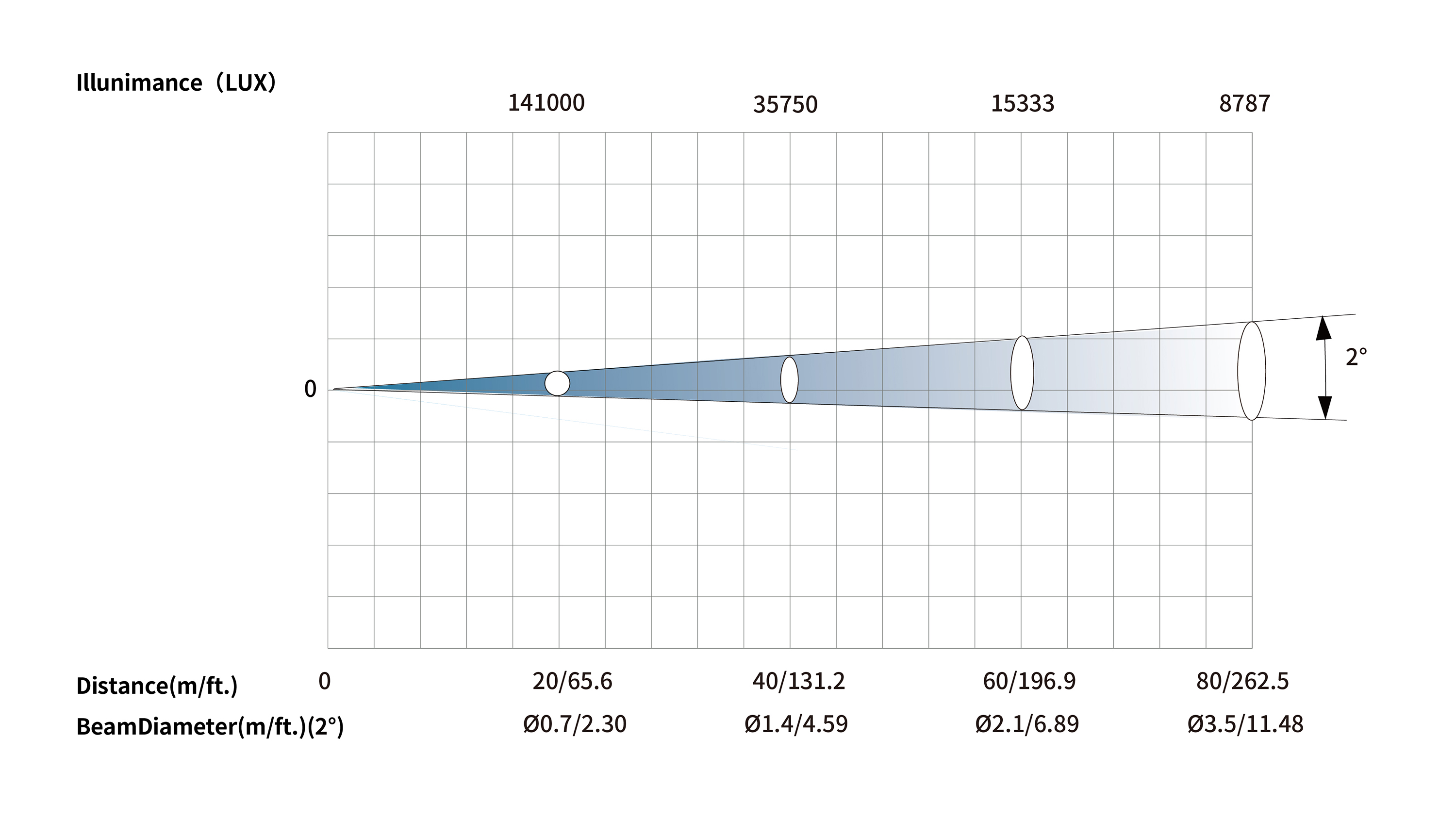

Photometric Diagram

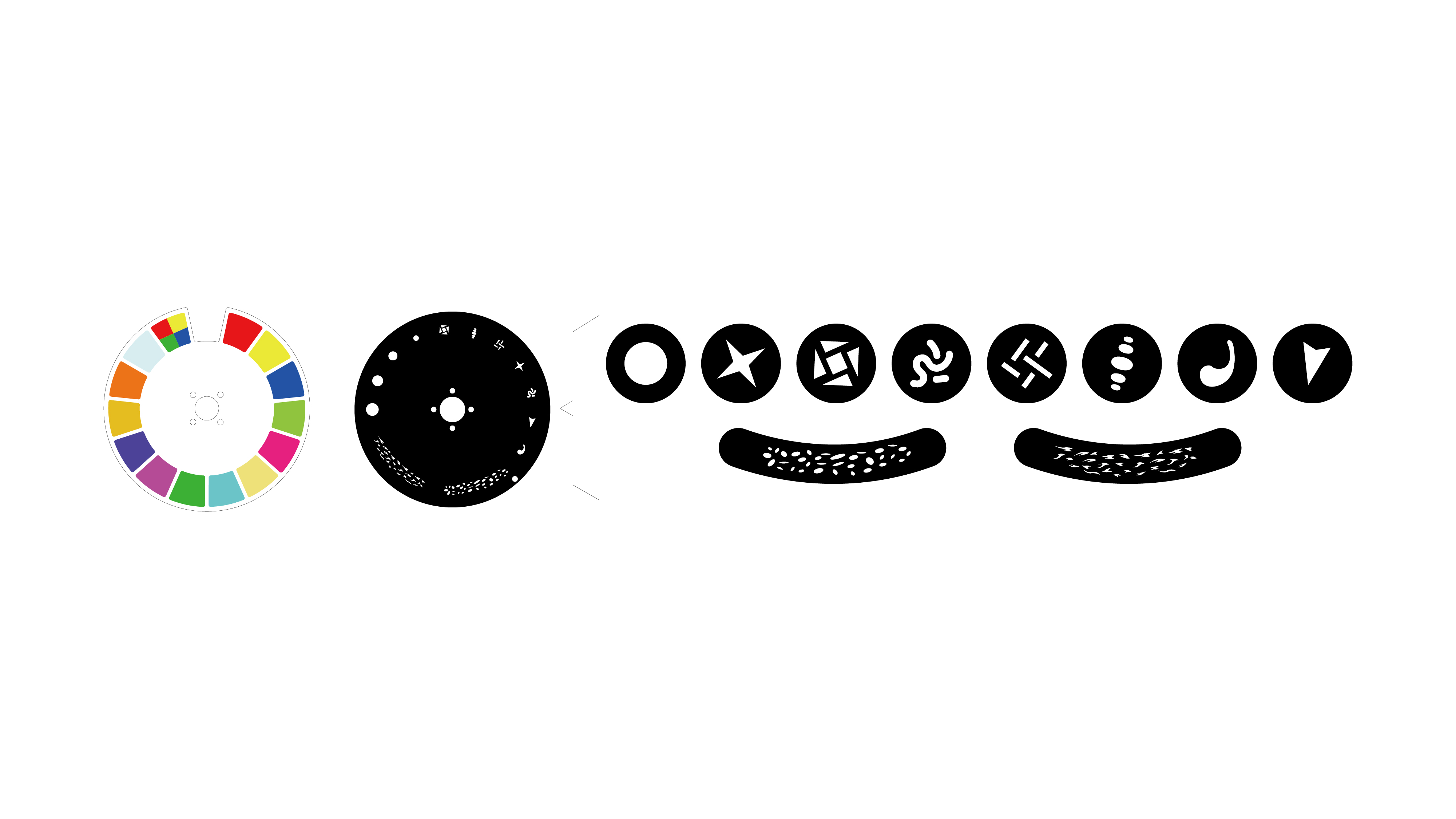

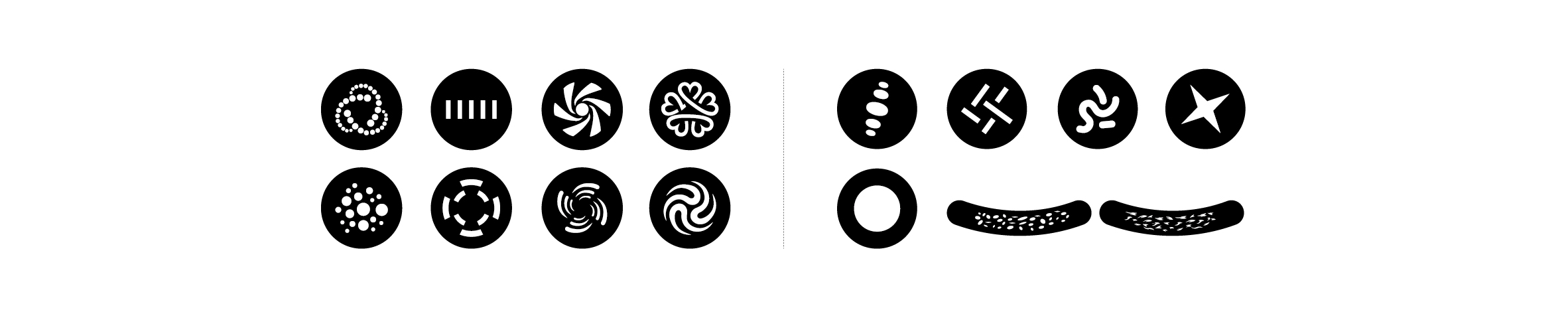

Gobos & Colours

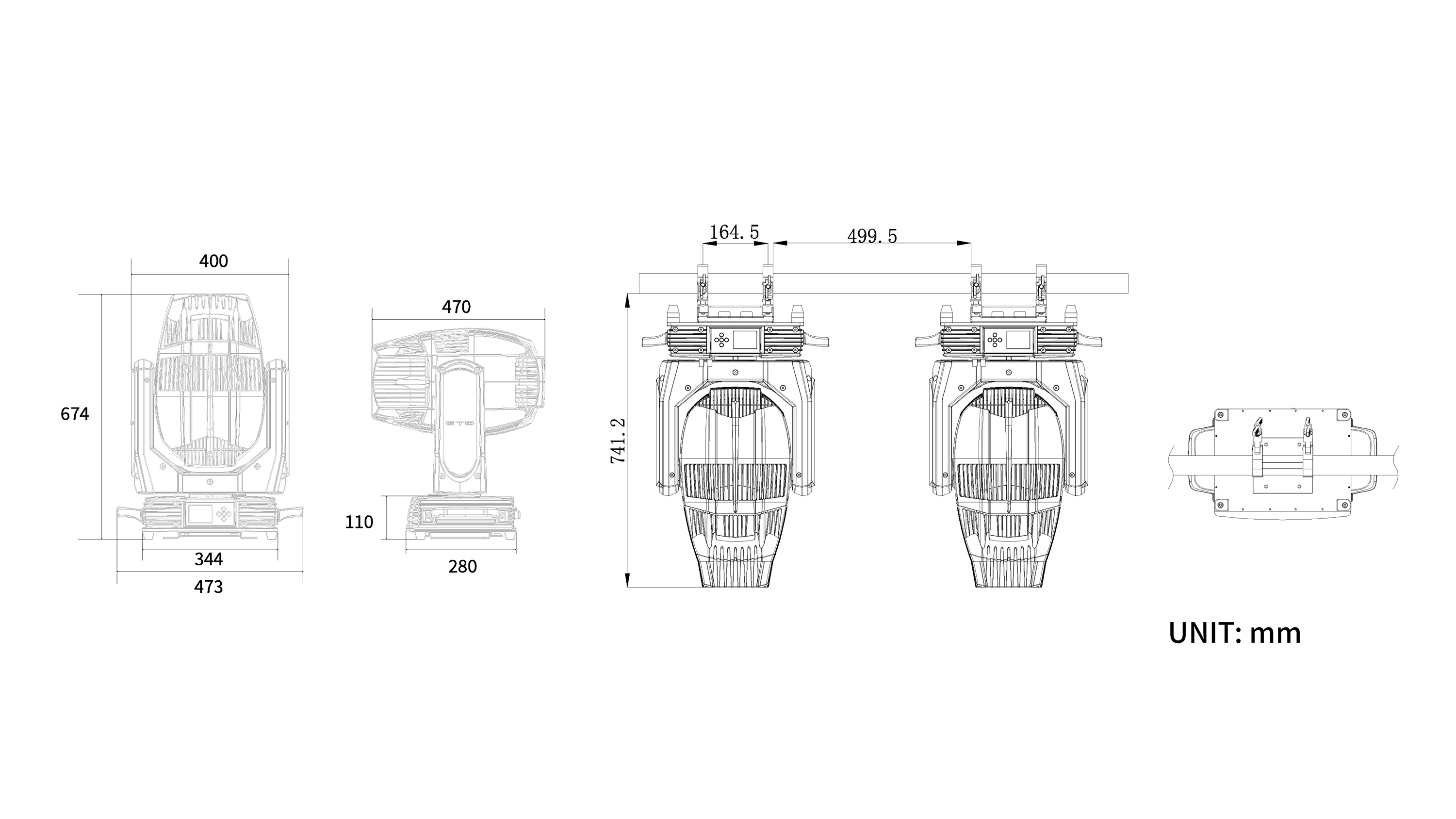

Exterior Dimensions
Accessories
Product Video
GTD-F4 II Beam
