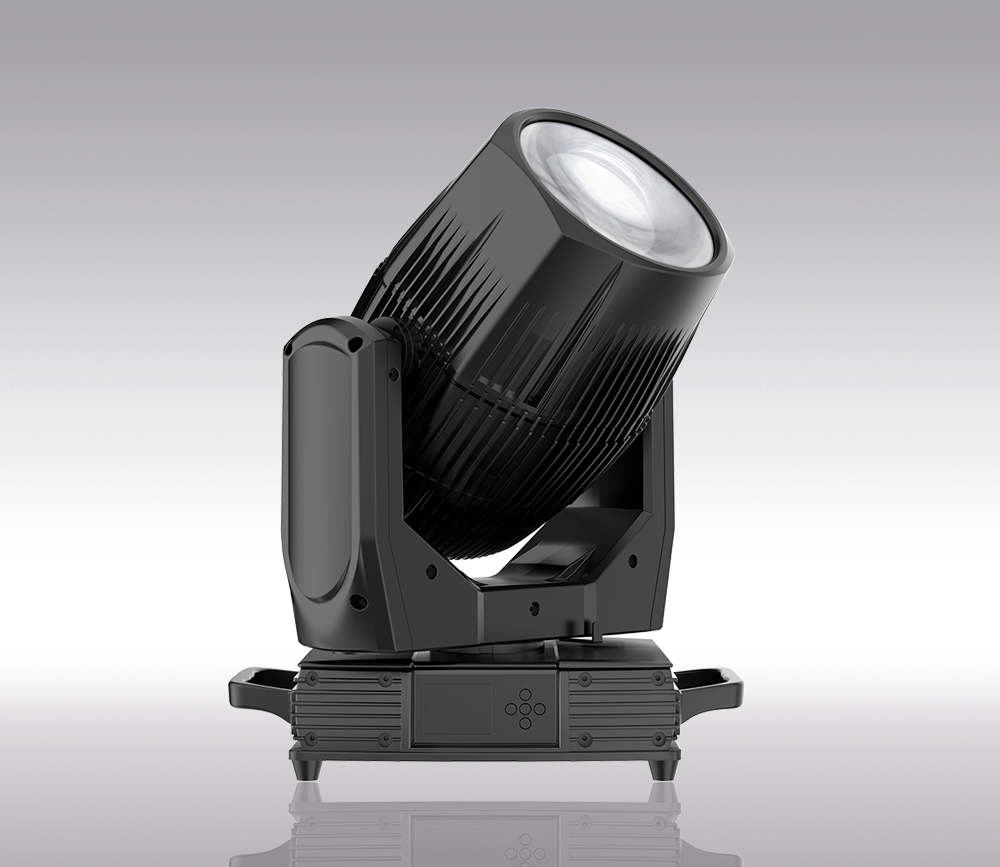

Product Model
GTD-F400 W
Product Series
IP66
Technical Specification
Optical
Light source LED: 400W
Expected average lifetime: 20000  hours
Zoom range: 10°-43°(10%)/6°-35°(50%)linear high speed zoom
Focus: Any Any multi-point focus, 5 m to infinity tracking focusmulti-point focus, 5 m to infinity tracking focus

Photometric
Total Output (Lumen): 16000 lm
Color temperature: 3200K~6500K
CRI: Ra≥85

Electrical
Power input, nominal: AC 100-240V - 50/60Hz
Max. Power consumption: 649W
Max. Current: 8.94A
PF: ≧0.99
Power supply: Unit wide range electronic SMPS
Main fuse: 250V / 10A

Control and programming
Control channels (DMX): 11/8/13
Protocol: DMX-512 RDM
Display: LCD

Physical / Installation
Weight: 22kg(48.5 lbs )
IP rating: IP66
Material: Aluminum, copper, steel, plastic, iron
Mounting points: 2 folding clamp + attachment points for safety wire


Dynamic effects
Pan/Tilt movement: 540˚/230°
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, electronic linear dimming

Thermal
Operating range  5˚F to 113˚F (-15˚C to 45˚C)
Startup range  -12.9˚F to 113˚F (-25˚C to 45˚C)
Storage range  -39.9˚F to 140˚F ( -40˚C to 60˚C)
Cooling: Active fan
Humidity: ≤75%

Connections
AC power: Power plug
DMX data input/output: Chassis 3-pin

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-200811

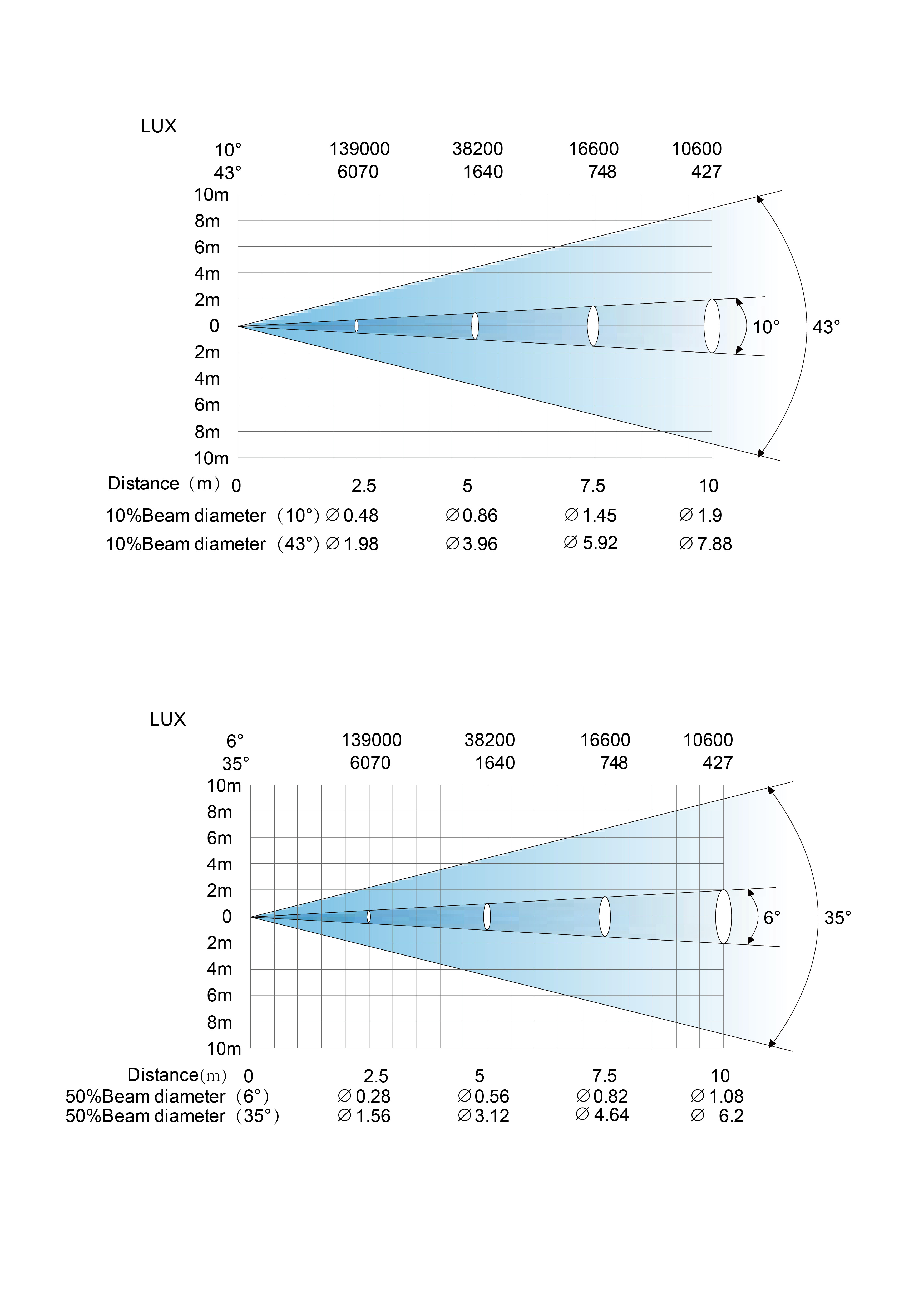

Photometric Diagram
Gobos & Colours

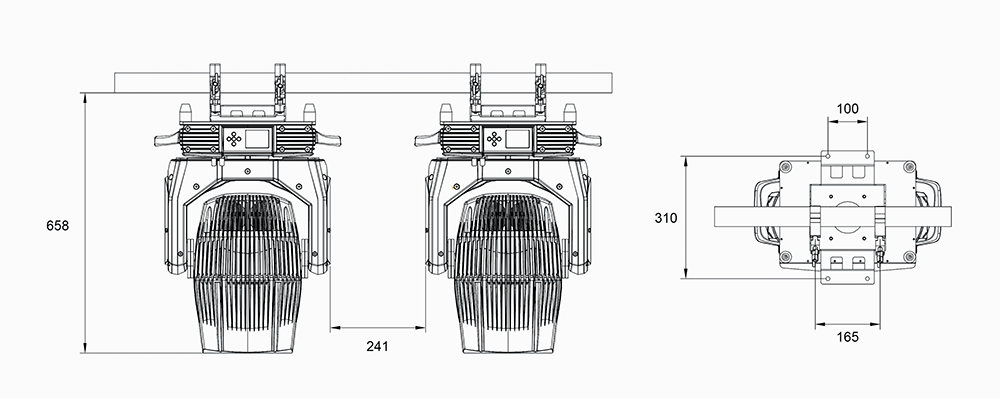

Exterior Dimensions
Accessories
Product Video
GTD-F400 W
