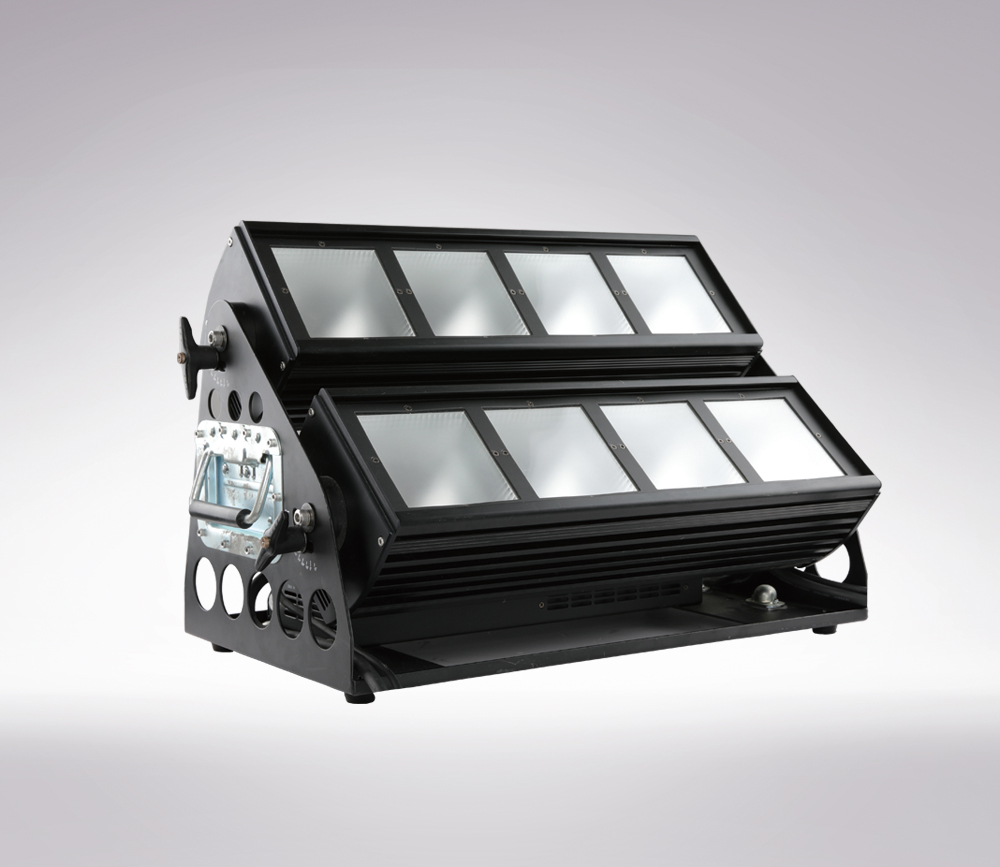

Product Model
GTD-L488
Product Series
cyclorama series
Technical Specification

Optical
Light source: 48W (RGBWA) 8 LEDs
Expected average lifetime: 50000 hours
Beam angle: 60° x 76°
Total output (Lumen): 14500 lm
Color temperature: 3200K - 7200K linear regulation
Mixing distance: >0.5 mtr(1.6 ft.)

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 310W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/6.3A

Control and programing
Control channels (DMX): 14/8
Protocol: DMX-512
Display: 4 x 8 segment display

Physical / Installation
Weight: 16 kg(35 lbs.)
IP rating: IP20
Material: Aluminum, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 1 mtr(3.3 ft.)

Dynamic effects
Pan/Tilt movement: Manually adjustable
Strobe: 1-25Hz, synchronized, pulse effects
Dimmer: 0-100%, 16-bit, electronic linear dimming

Thermal
Operating range: 14˚F - 113˚F(-10˚C - 45˚C)
Startup range: 5˚F - 113˚F(-15˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Passive
Humidity: ≤85%

Connections
AC power: Neutrik powerCon
DMX data input/output: Chassis 5-pin Neutrik XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013
Safety: EN 60598-2-17:1989/A2:1991

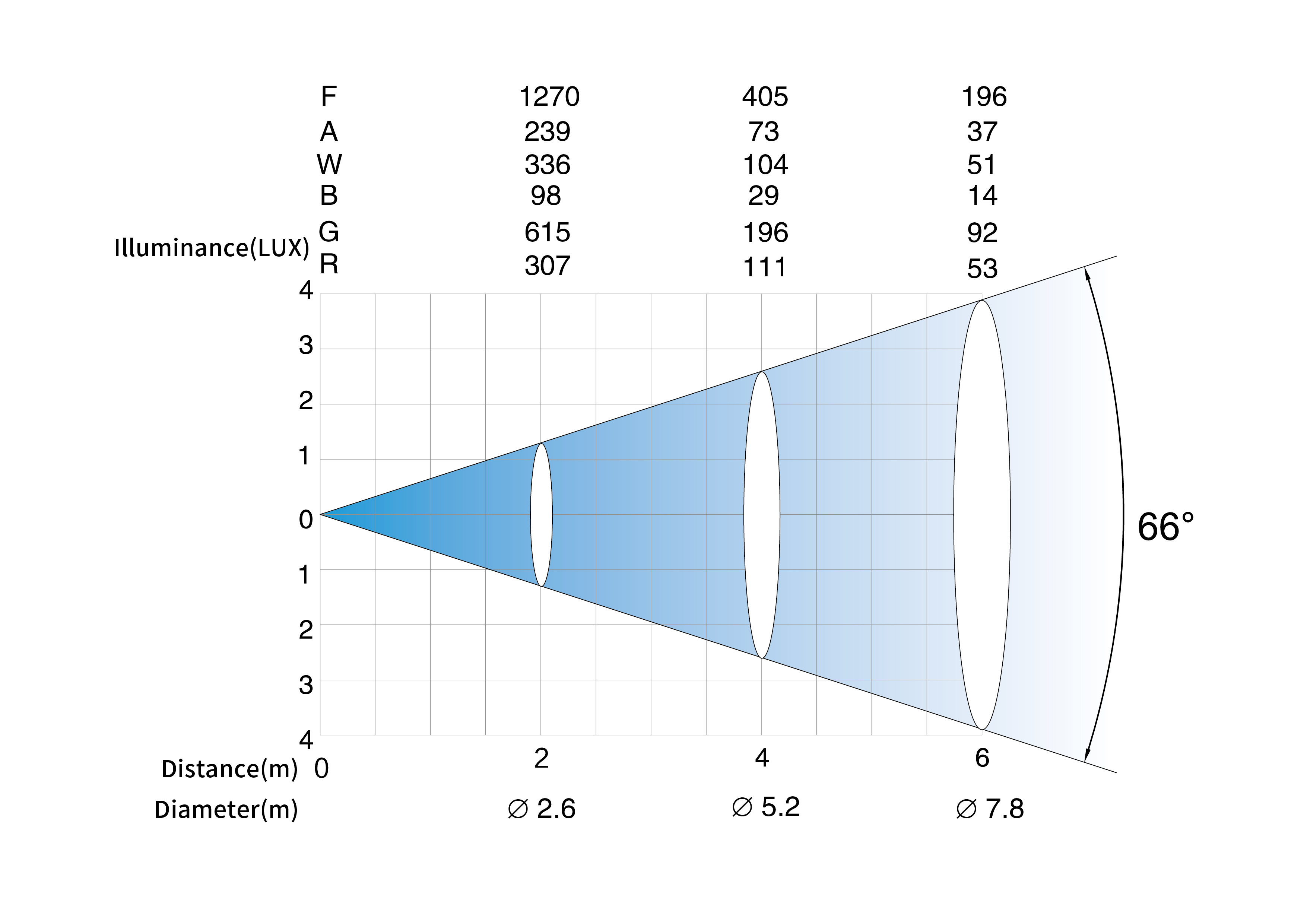

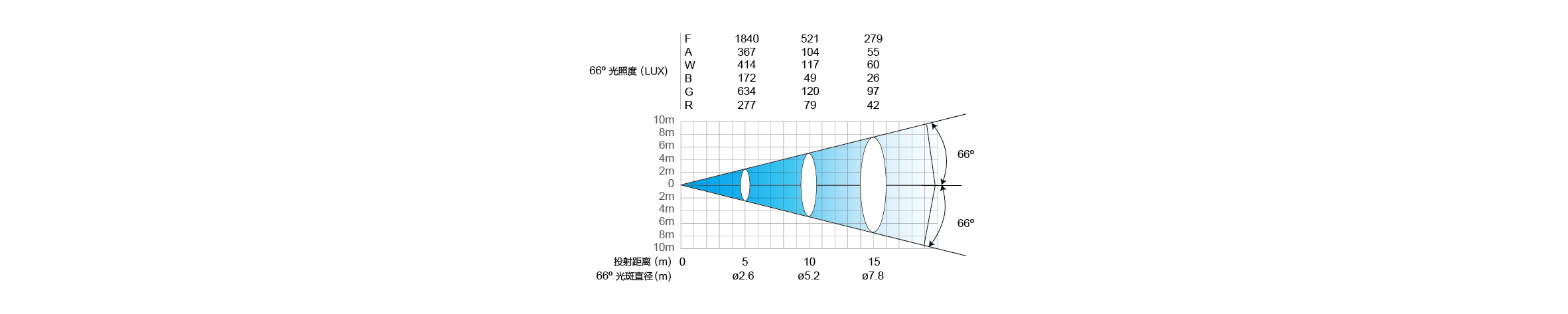

Photometric Diagram
Gobos & Colours

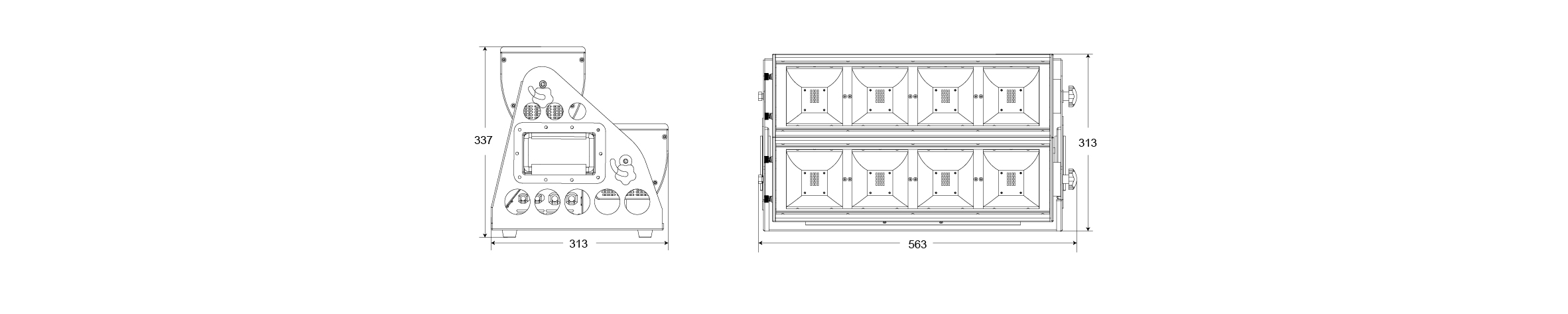

Exterior Dimensions
