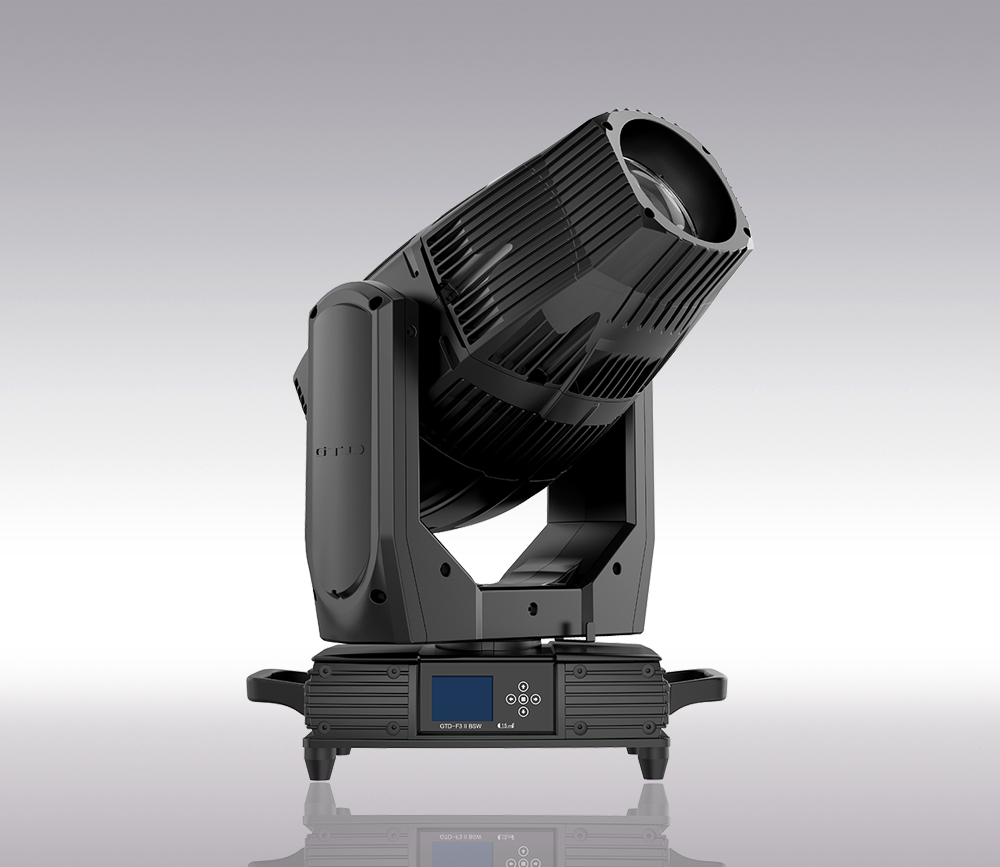

Product Model
GTD-F3 II BSW
Product Series
IP66 SERIES
Technical Specification
Optical
Light source: PHILIPS MSD Platinum Flex 300S
Expected average lifetime: 6000 hours
Color temperature correction: 7200K
Lumens: 16000 lm
Zoom range: BEAM 0°~2.5° / SPOT 3°~ 43° / WASH 4°~ 45°
CRI: ≥80
Focus: with precision HD Glass lens, electronic linear focus clearly
Prism: 1 sixteen-prism, double opposite mirror
Frost: 1-independent frost effect

Gobo

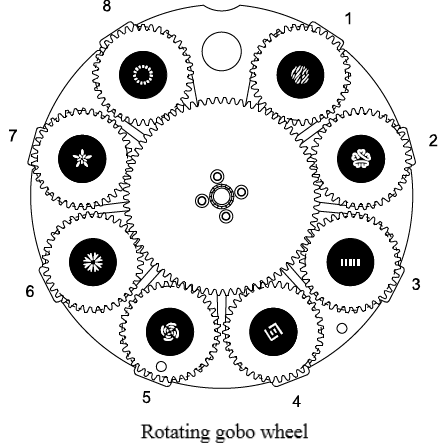

Rotating gobo wheel: 1 interchangeable gobo rotator, 8 optional pattern pieces,

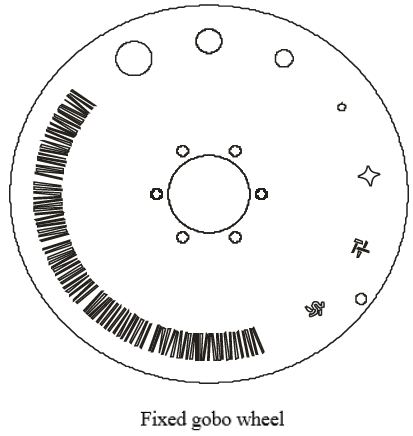

Fixed gobo wheel: 6 gobos + open, CW/CCW rotation, variable speed.
Gobo outside diameter: 14.4 mm
Max. Image diameter: 6 mm
Max Thickness: 0.5 mm
Gobo material: metal

Color

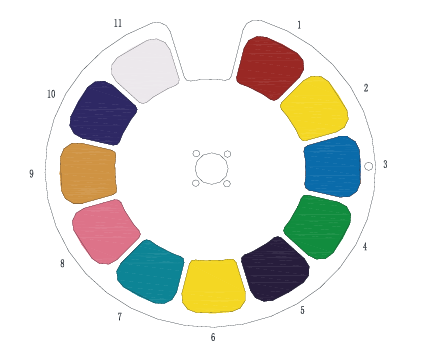

Color wheel: 11 color gel and open gobo, linear adjustment function, “Rainbow effect” in both directions

Electrical
Power input, nominal: AC 200-240V 50/60Hz
Max. Power consumption: 570W
Max current: 2.5A, PF: ≧0.99
Power supply unit: ≧0.99
Main fuse: 6.3A
Power input: Self-contained power cord
DMX data input/output: Chassis 3-pin

Control and programming
Control channels (DMX): 19/16/22
Protocol: DMX-512 RDM
Display: LCD

Physical / Installation
Weight: 28kg(61.73 lbs.)
IP rating: IP66
Material: Aluminum, copper, steel, plastic, iron
Mounting points: 4 fixed folding lamp hook + attachment points for safety wire

Dynamic effects
Pan/Tilt movement: 540˚/270˚, adopting a function which resets 32-bit accurately and automatically
Strobe: 1-25Hz, strobe randomly, pulse randomly, strobe synchronously and asynchronously
Dimmer: 0-100%, mechanical linear dimming

Thermal
Operating range: 5˚F - 113˚F(-15˚C
- 45˚C)
Startup range: -13˚F
- 113˚F(-25˚C - 45˚C)
Storage range: -40˚F
140˚F(-40˚C - 60˚C)
Cooling: Active fan
Humidity: ≤85%

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,
Safety: EN 60598-2-17:1989/A2:1991, GB 7000.1-2015, GB 7000.217-2008

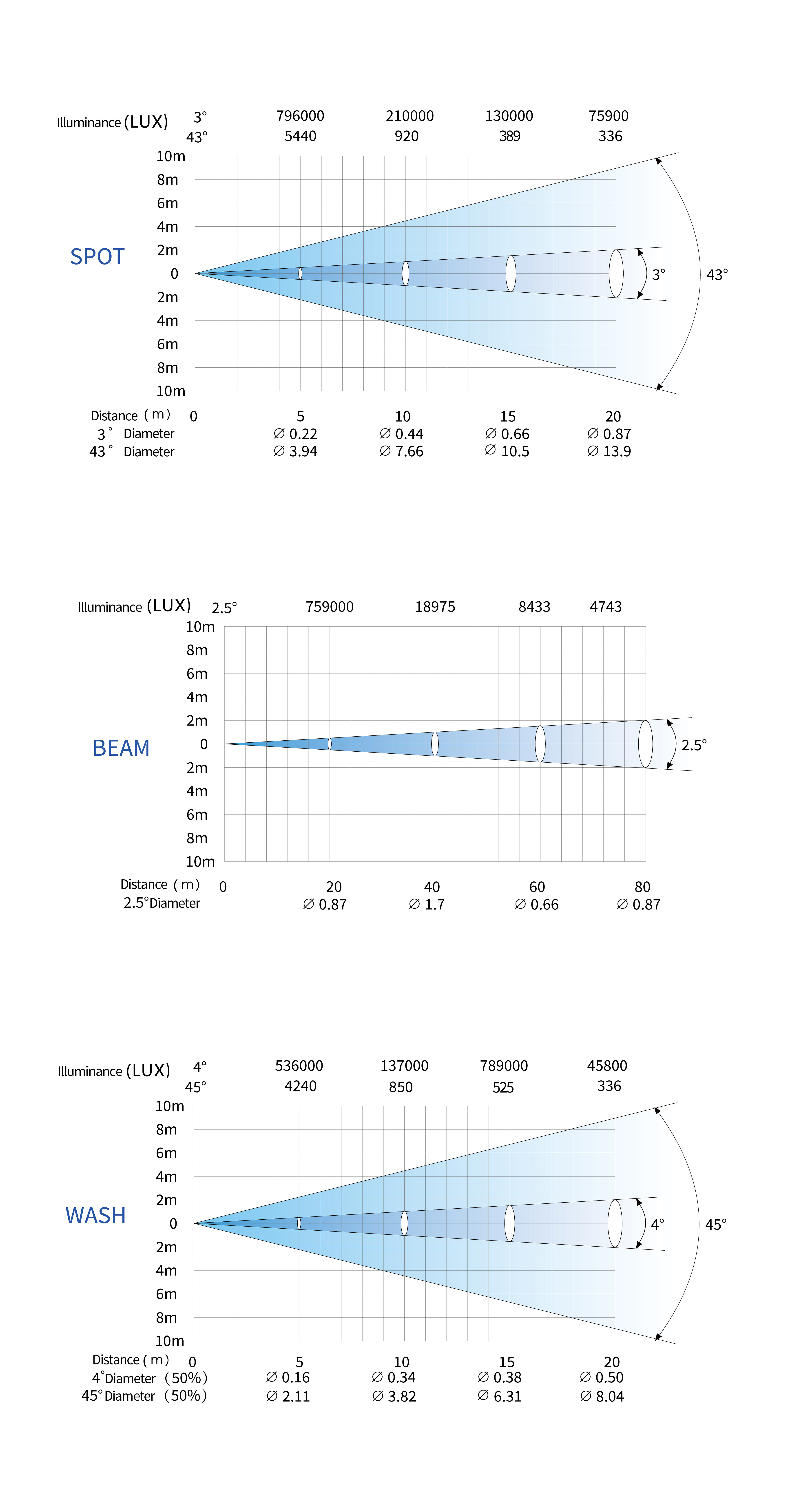

Photometric Diagram

Gobos & Colours

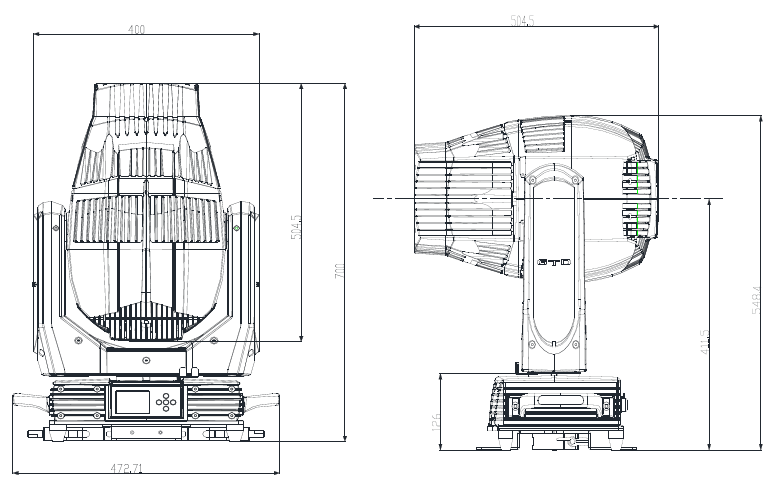

Exterior Dimensions
Accessories
