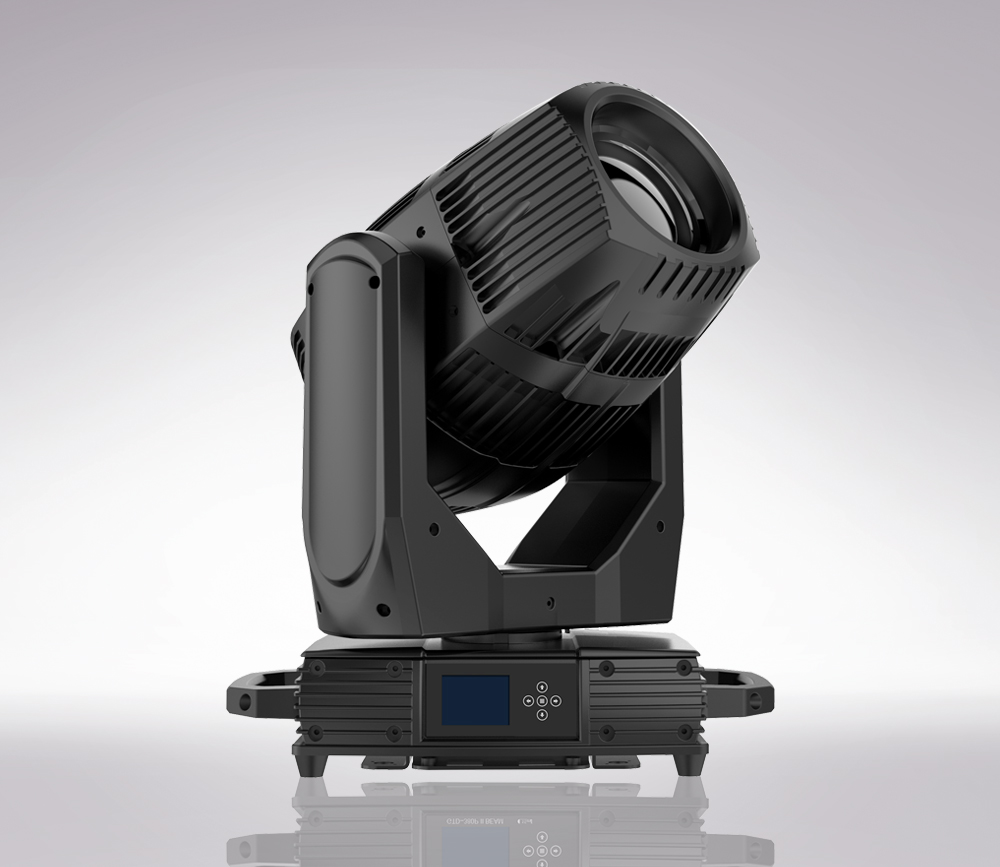

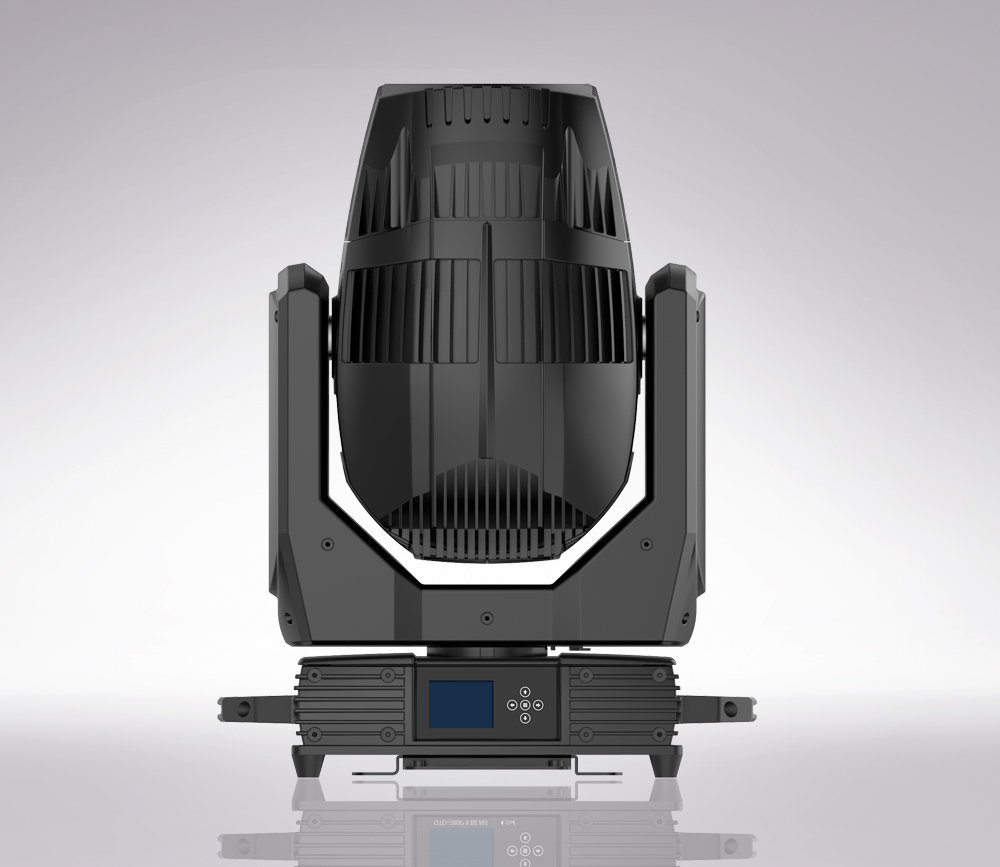

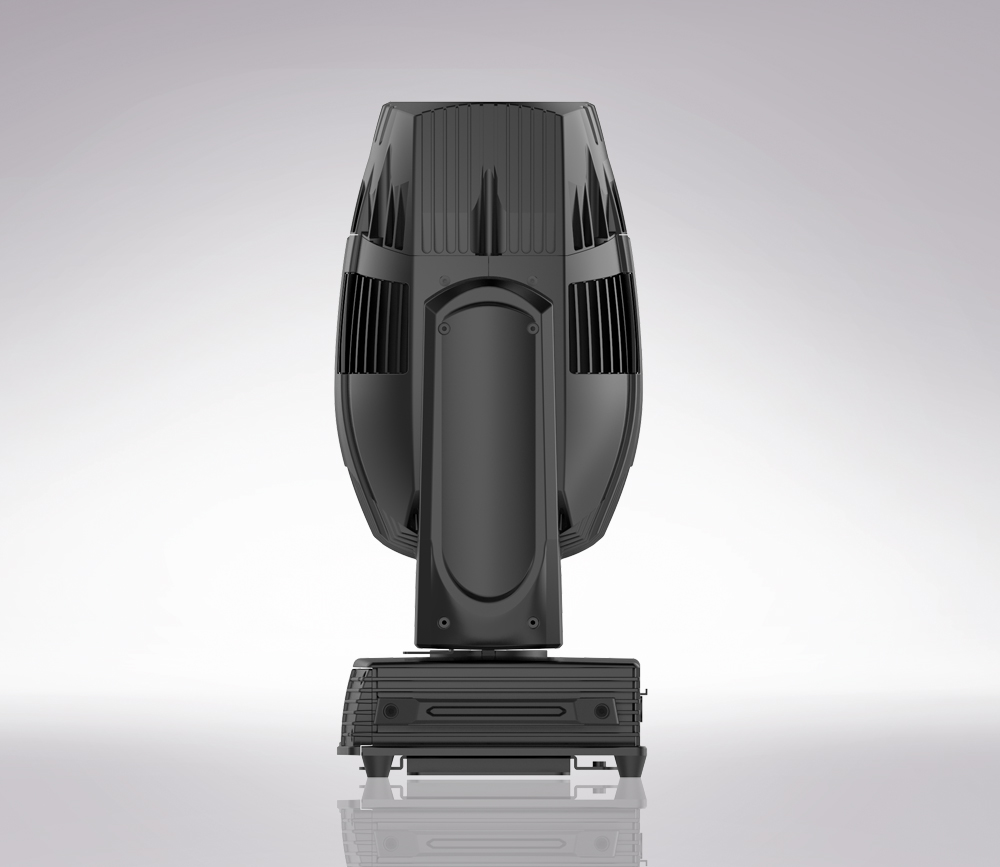

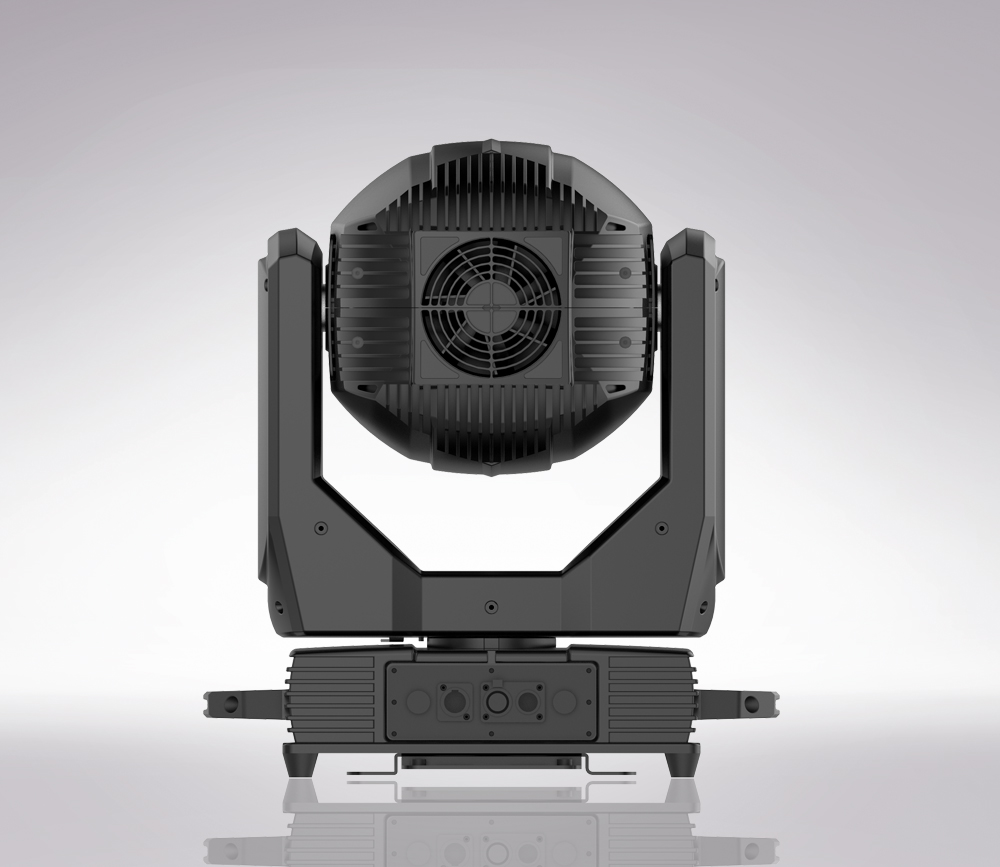

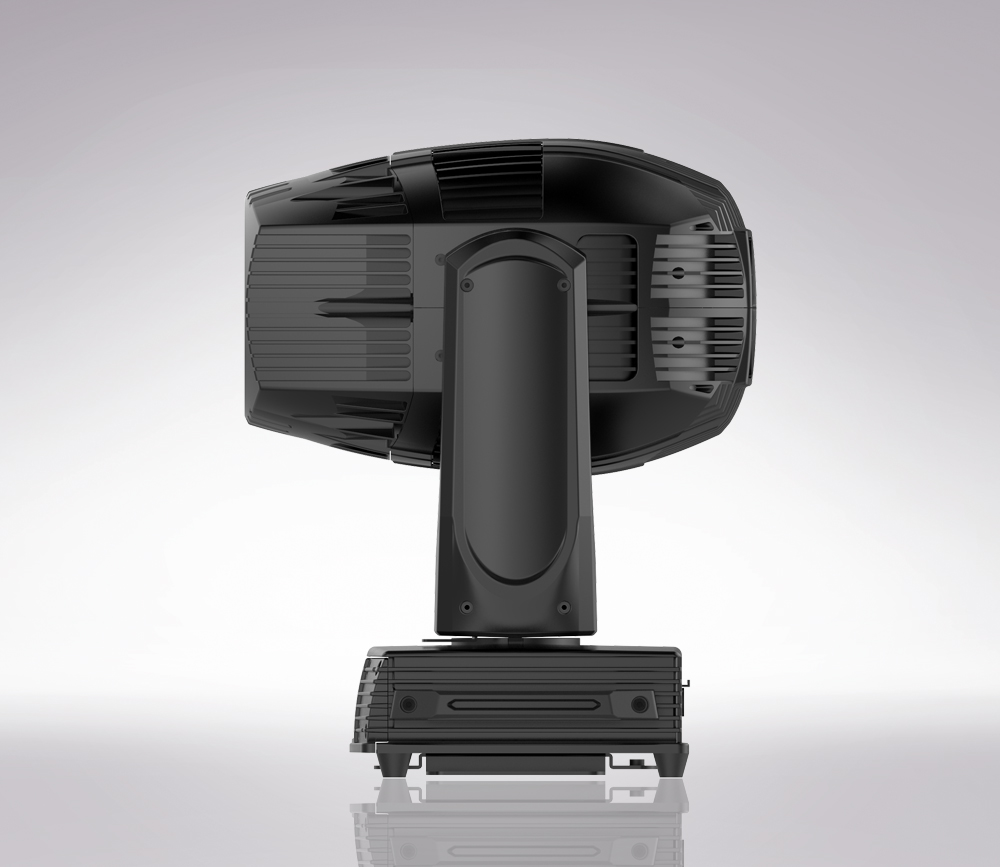

Product Model

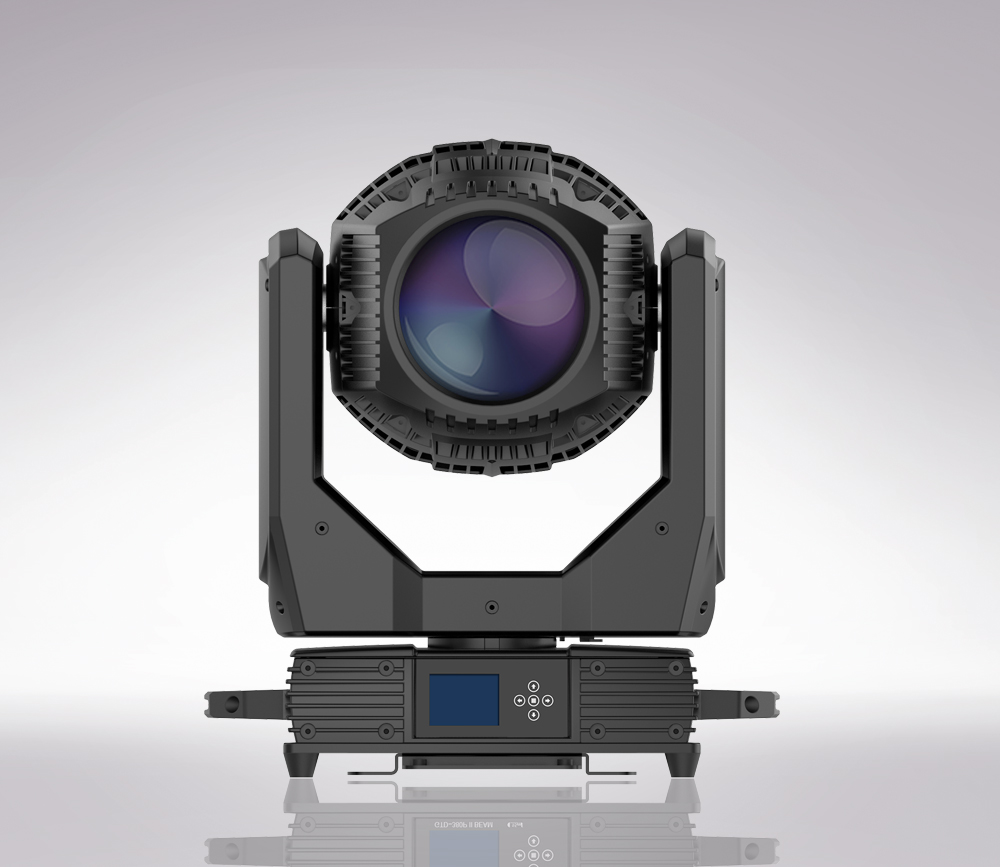

GTD-F3 N Beam
Product Series
IP66 Series
Technical Specification
Optical
Light source: LE sheet MSD Platinum Flex 300S
Expected average lifetime: 6000 hours
Beam angle: Zoom range 2°
Focus: Variable range, from 5m to infinity
Prism: One tip 8-facet  prism,one tip 16-facet  prism; can control the effect independently; 2 prism combination can produce 24 prism effect
Ballast: Electronic
Total Output (Lumen): 12000 lm
Color temperature: 7200K
CRI: ≥80

Gobo
Static gobo wheel: 10 gobos + 2 animation gobos, CW/CCW rotation,variable speed

Color
Color wheel: 14 gobos +open, linear color shifing, split color and "Rainbow effect”

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 580W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/6.3A

Control and programming
Control channels (DMX): 15/13/17
Protocol: DMX-512 RDM
Display: Graphic LCD backlit
16-bit control: Dimmer, colors, focus, zoom, pan/tilt, gobo indexing & rotation

Dynamic effects
Pan/Tilt movement: 540˚/270˚
Strobe: High speed strobe, 1-25Hz random strobe, pulse strobe from slow to fast, synchronous and asynchronous strobe
Dimmer: 0-100% mechanical dimming
Zoom: Motorized


Physical / Installation
Weight: 24 kg(52.91 lbs.)
IP rating: IP66
Material: Aluminium, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.6 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.21 ft.)

Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Heat pipe radiator, temperature controls fan heat dissipation intelligently

Connections
AC power: 4.92 ft.(1.5 m) cable with water proof plugs
DMX data input/output: 4.92 ft.(1.5 m) cable with 3-pin XLR (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety:EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008

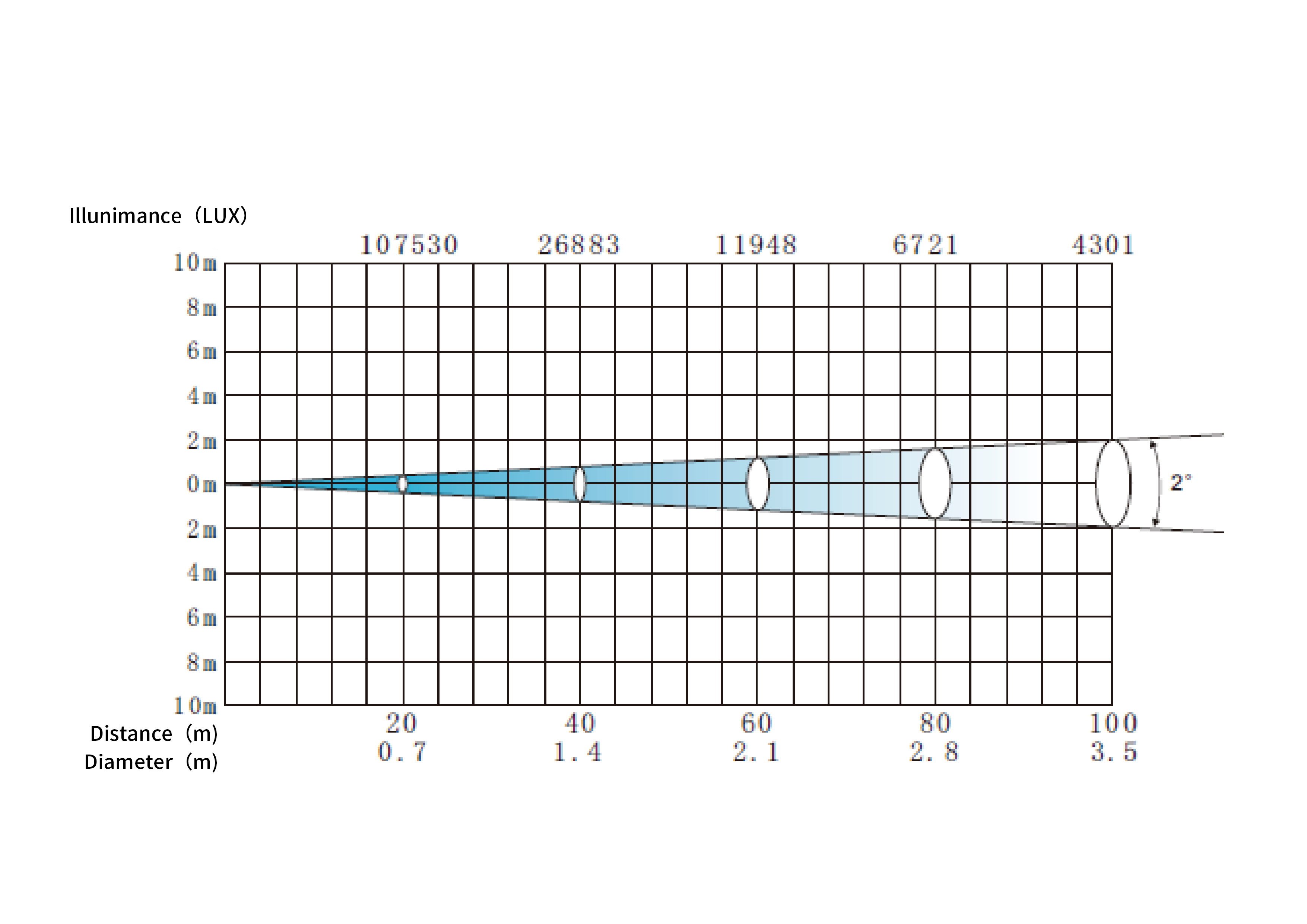

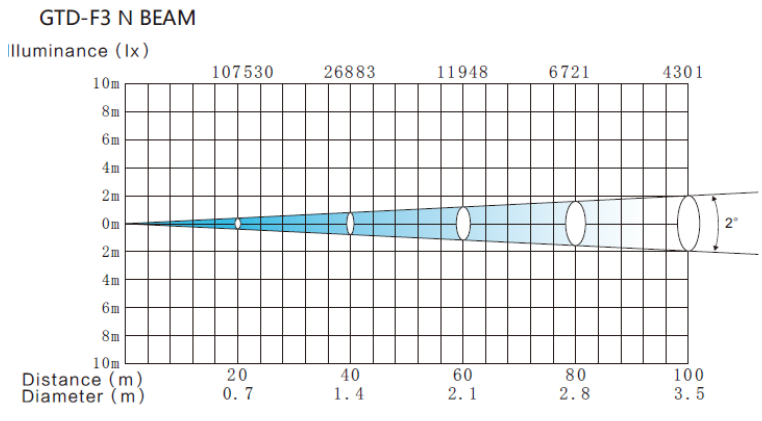

Photometric Diagram

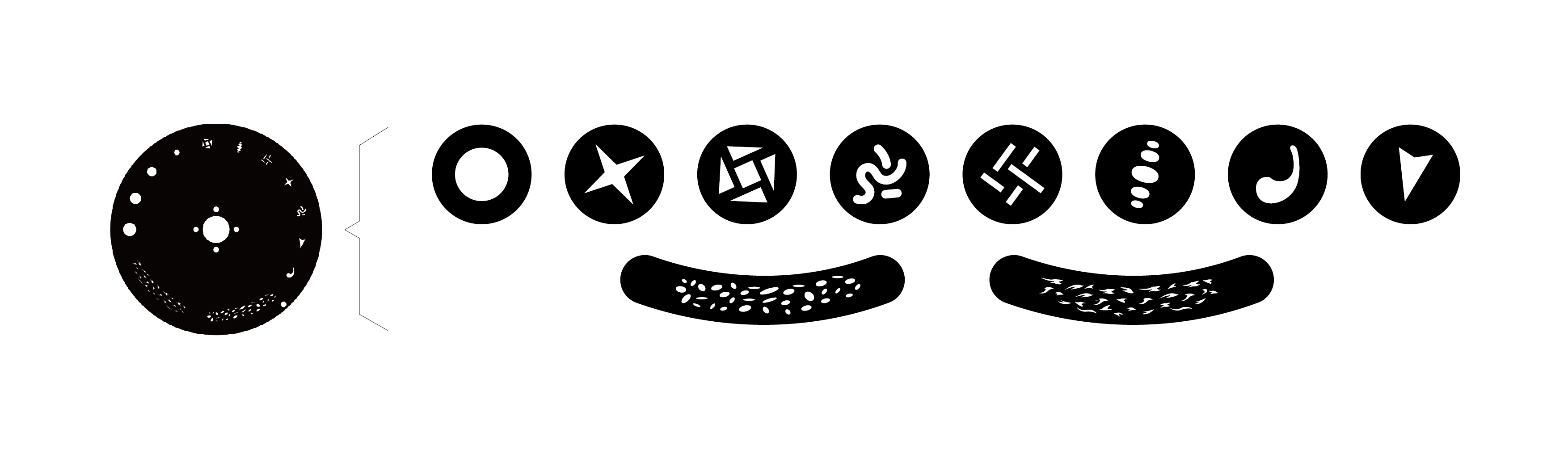

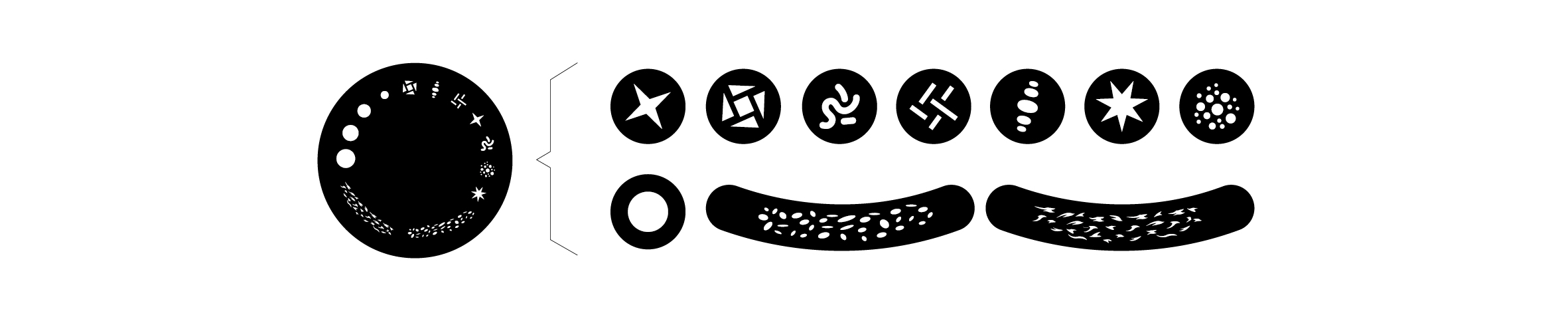

Gobos & Colours

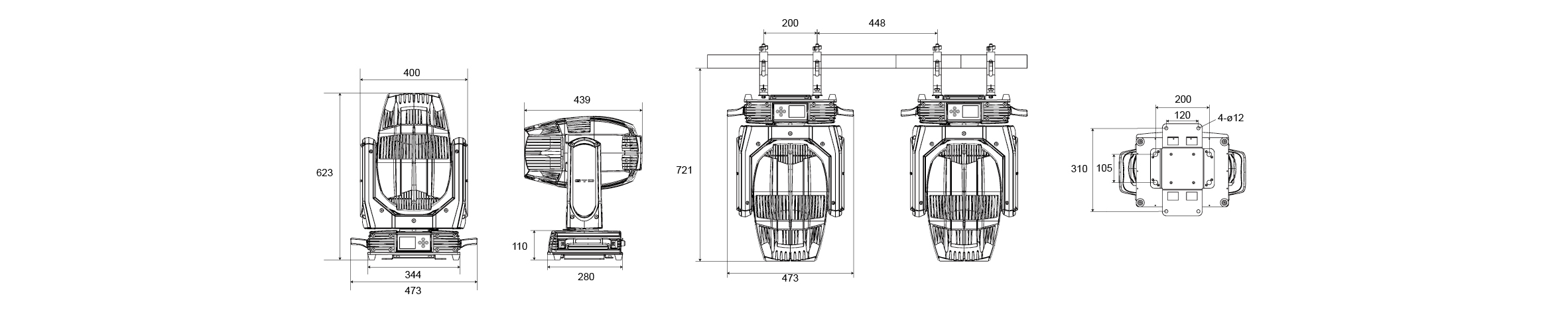

Exterior Dimensions
Accessories
Product Video
