Product Model

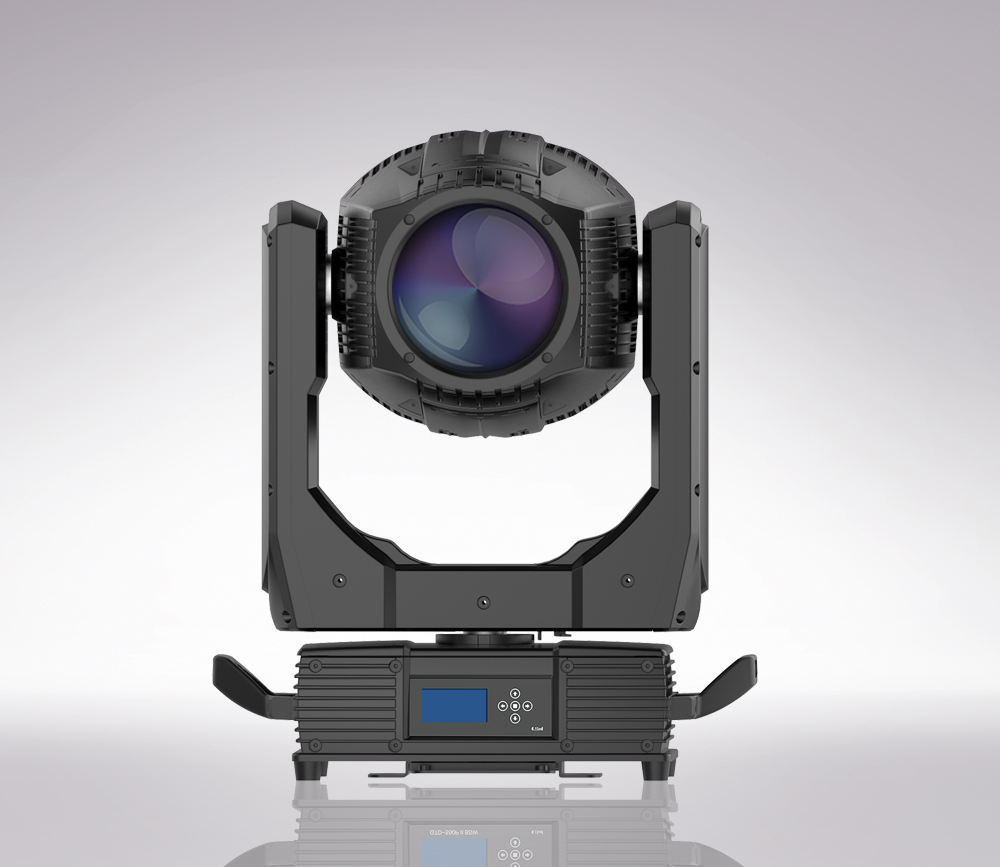

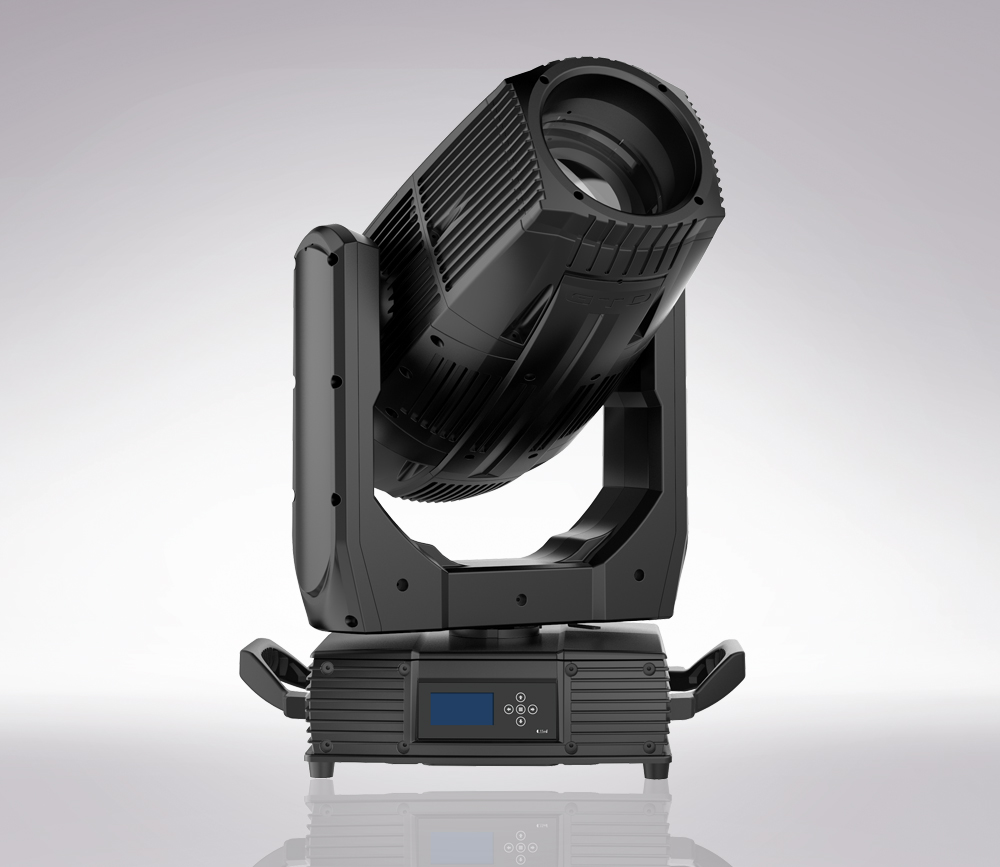

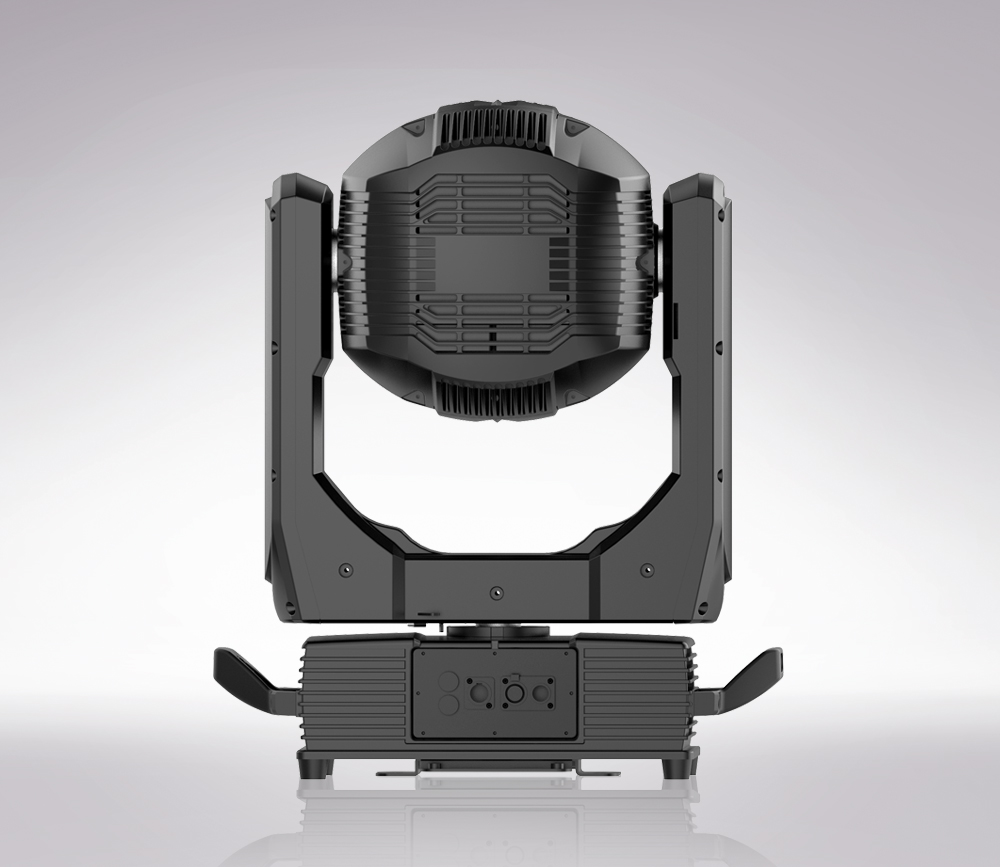

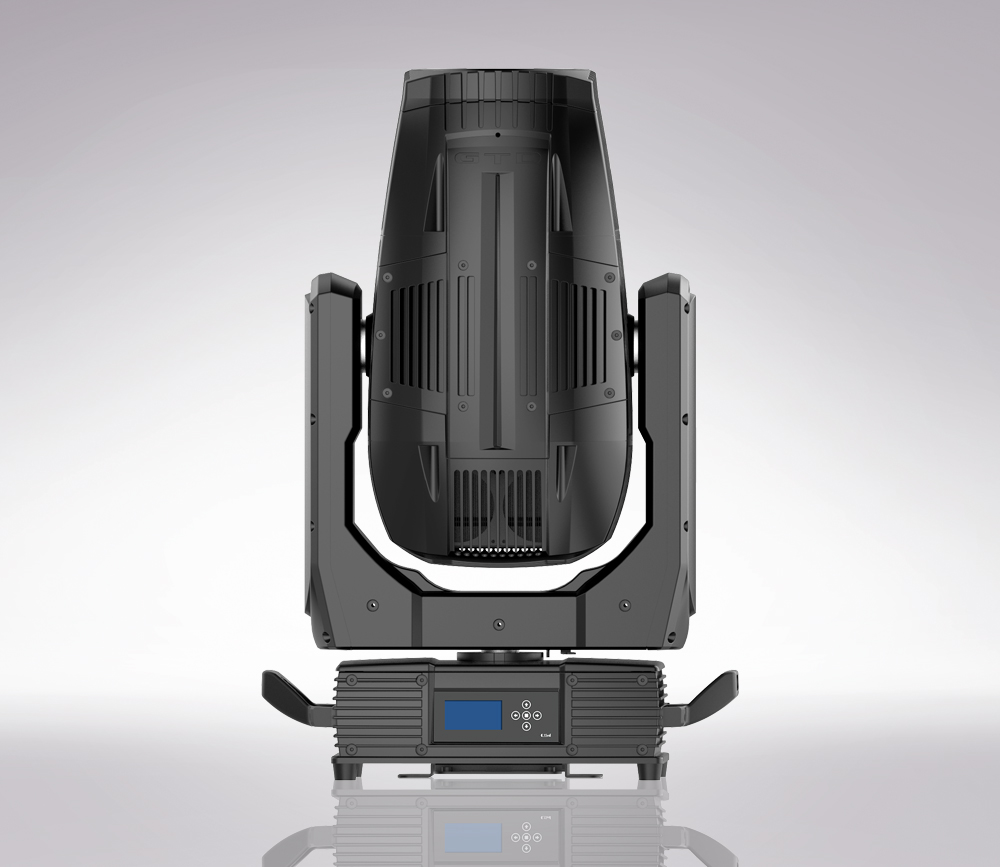

GTD-F5 II BSW
Product Series
IP66 Series
Technical Specification
Optical
Light source: PHILIPS 550W MSD Platinum 25 R / OSRAM SIRIUS HRI 550W XL
Expected average lifetime: 1500 hours
Beam angle: BEAM 1.7° / SPOT 1.7° -26° / WASH 3.4° -38°
Focus: High-precision glass lenses, electronic linear HD focus
Prism: One tip 8-facet  prism, one symmetric prism; can control the effect independently, 2 prism combination can produce concentric circle effect
Frost: 1-independent frost effect
Ballast: Electronic
Total Output (Lumen): 13000 lm
Color temperature: 7800K
CRI ≥85

Gobo
Rotating gobo: 8 interchangeable gobos , CW/CCW rotation, variable speed
Static gobo wheel: 9 gobos + 2 animation gobos,  variable speed
Gobo outside diameter: 16.4 mm
Max. Image diameter: 7 mm
Max. Thickness: 1.5 mm(Glass)
Glass/Metal gobo: Glass

Color
Color wheel: 2 static color wheels including12 filters, linear color shifing, split color and "Rainbow effect”
CMY / CTO: CMY + CTO for linear infinity color mixing

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 830W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/10A

Control and programming
Control channels (DMX): 27/25/35
Protocol: DMX-512 RDM
Display: OLED display
16-bit control: Dimmer,  colors, CMY, CTO , focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning

Dynamic effects
Pan/Tilt movement: 540˚/ 270˚
Strobe: High speed strobe, 1-25hz random strobe, pulse strobe from slow to fast, synchronous and asynchronous strobe
Dimmer: 0-100%, mechanical dimming
Zoom: Motorized
Built-in macros: Prism, color


Physical / Installation
Weight: 46 kg(101 lbs.)
IP rating: IP66
Material: Aluminium, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 15 mtr(49.2 ft.)

Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Heat pipe radiator, temperature controls fan heat dissipation intelligently

Connections
AC power: Seetronic power socket
DMX data input/output: Seetronic 3-pin XLR  (in/out)

Certification and Safety
EMC: EN 55103-1:2009, EN 55103-2:2009, EN 61000-3-2:2006+A2:2009, EN 61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008
Included items

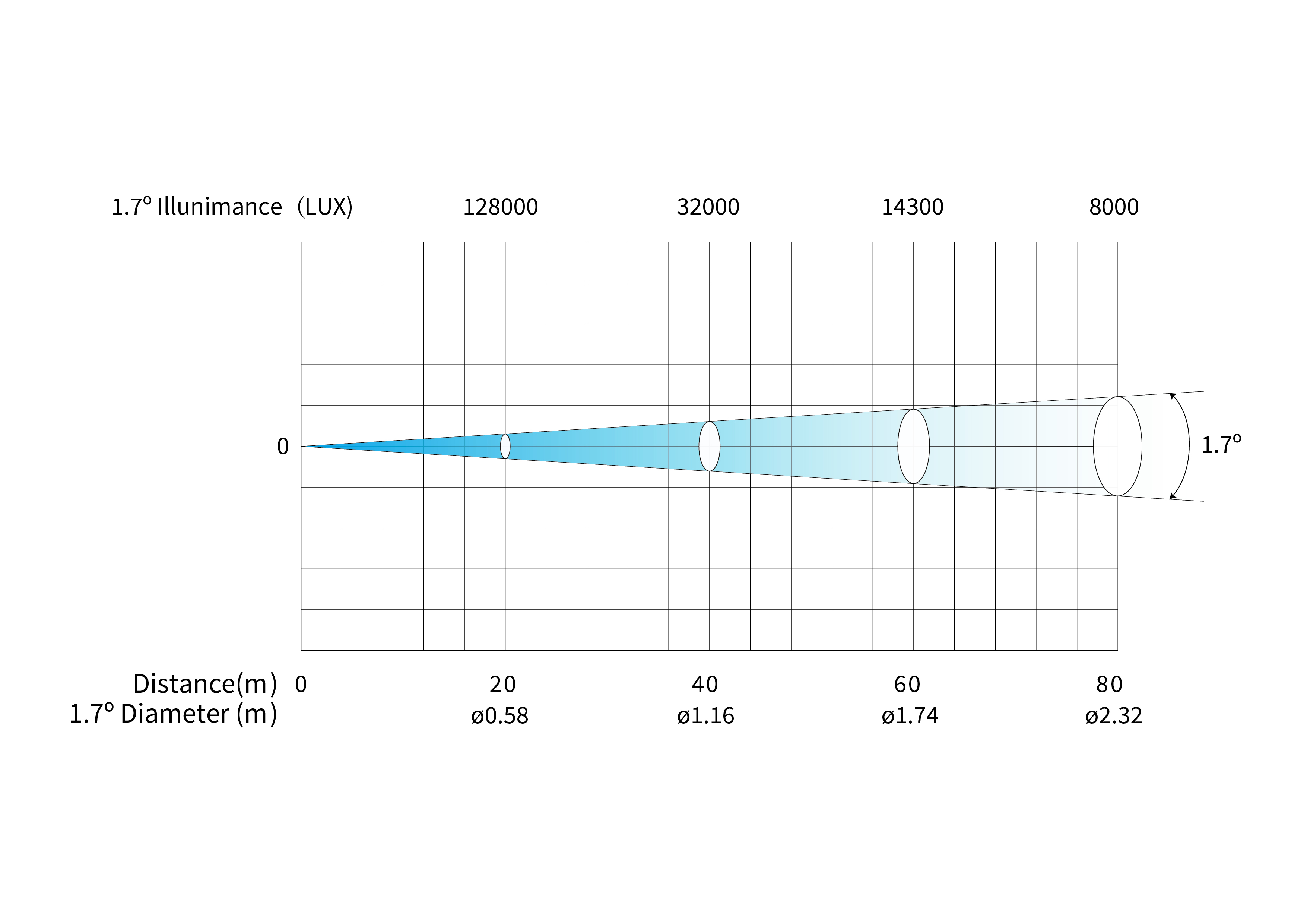

Photometric Diagram

Gobos & Colours

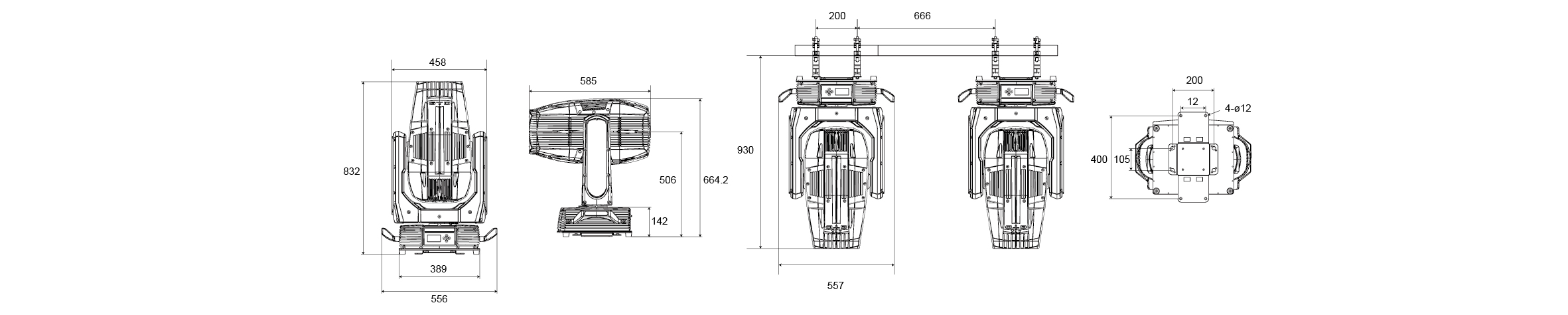

Exterior Dimensions
Accessories
Product Video
GTD-F5 II BSW
