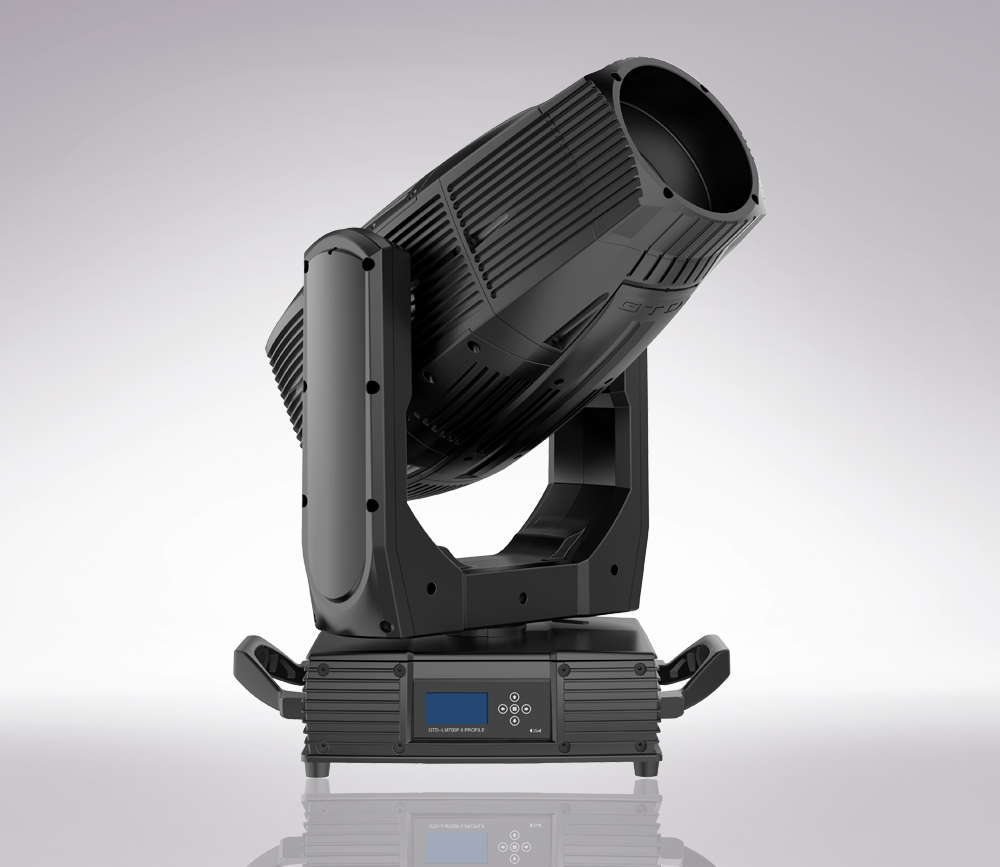

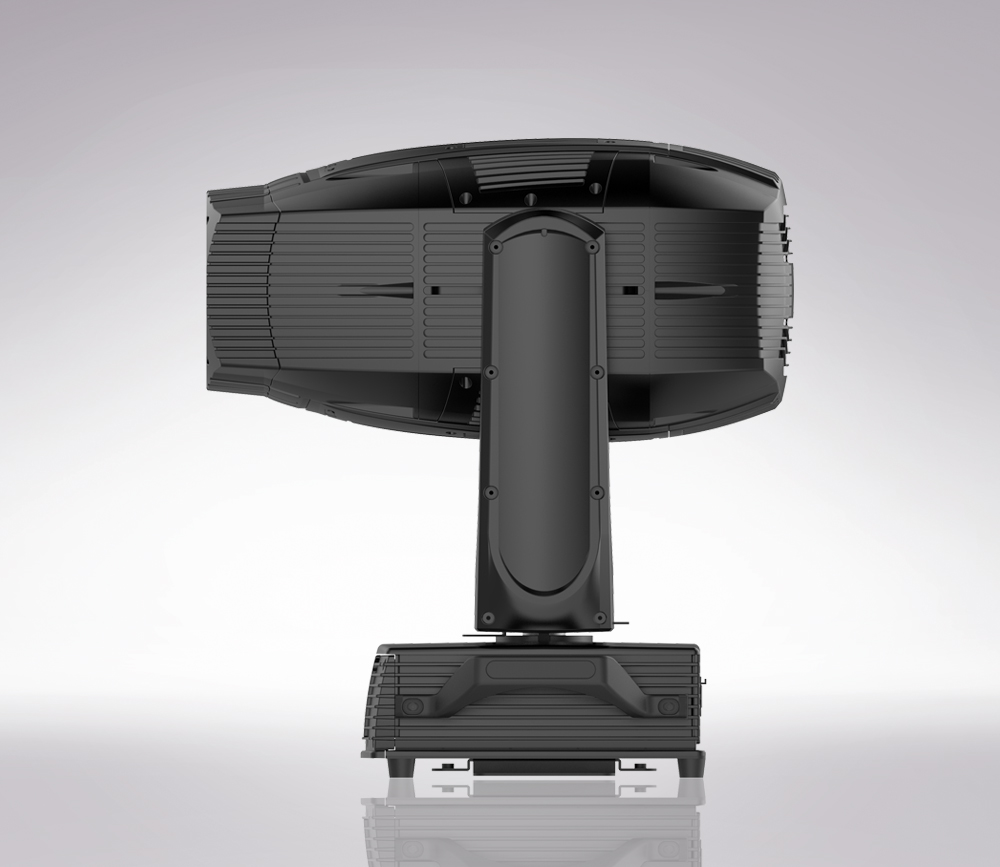

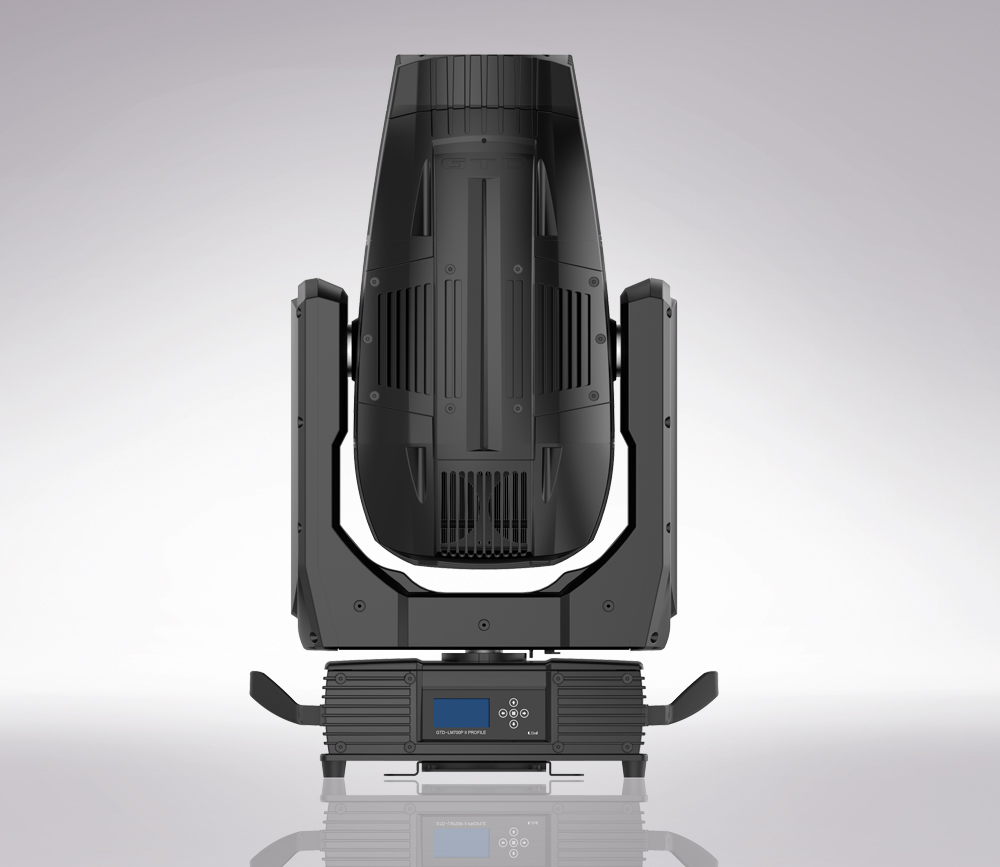

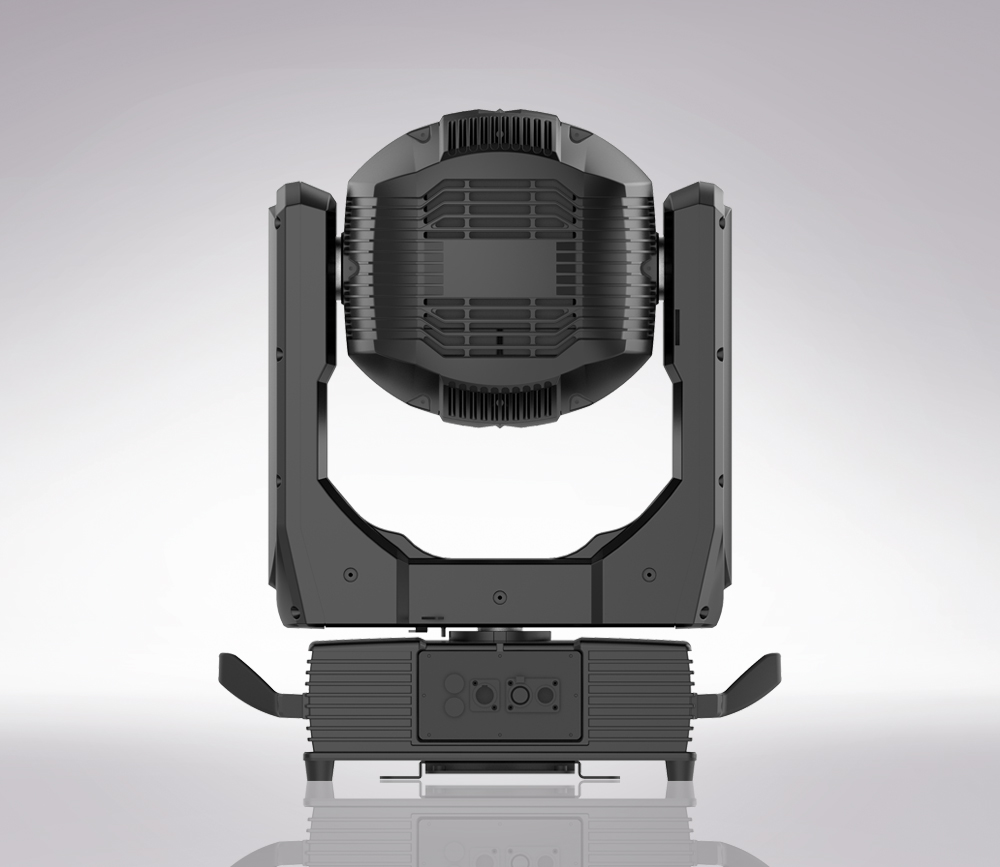

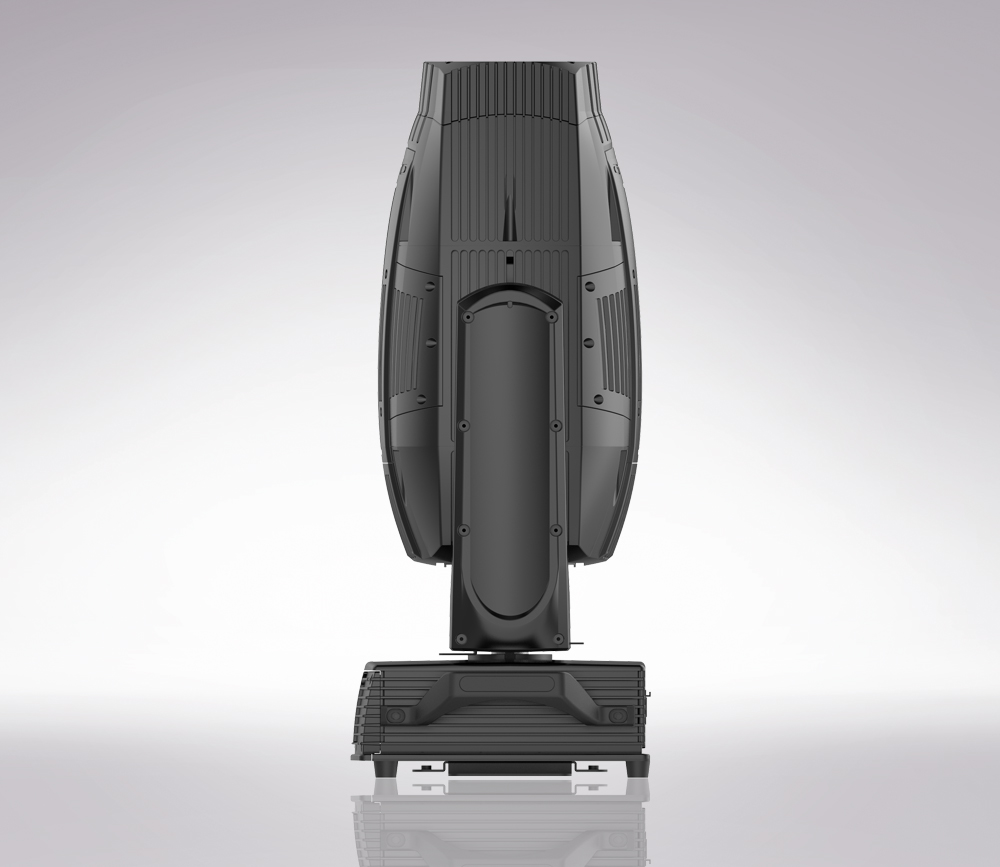

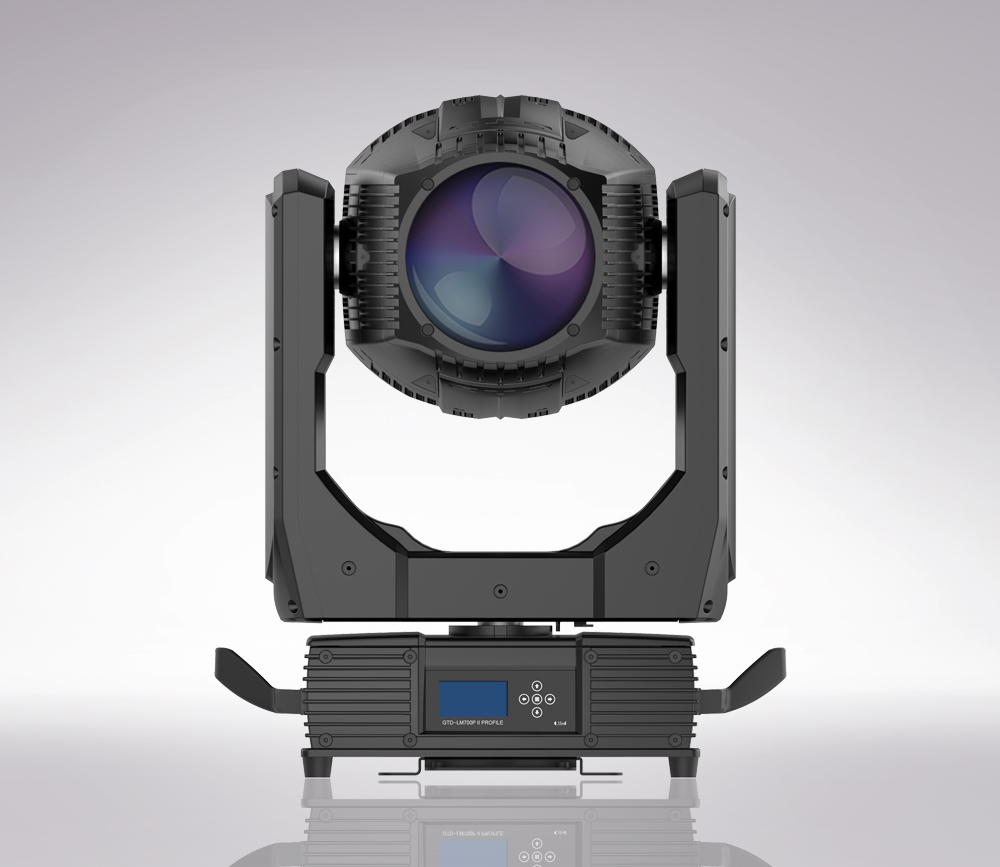

Product Model
F10 II Profile
Product Series
IP66 Series
Technical Specification

Optical
Light source: Single White 730W LED light source
Expected average lifetime: 20000 hours
Beam angle: Zoom range 5° - 45°
Focus: Variable range, from 5m to infinity
Prism: One 4-facet prism, CW/CCW rotation, variable speed
Ballast: Electronic
Total Output (Lumen): 35000 lm
Color temperature: 2700-7000K
CRI: ≥90

Framing
Consists of four shutter blade, full crossover of each blade, the framing system can rotate 90° and each blade can shape individually and cut off


Gobo
Rotating gobo: 6 interchangeable gobos , CW/CCW rotation, variable speed
Static gobo wheel: 7 gobos + open, variable speed
Gobo outside diameter: 27 mm
Max. Image diameter: 22 mm
Max. Thickness: 3.5 mm(Glass)
Glass/Metal gobo: Glass

Color
Color wheel: 6 high purity imported color filters + open,which support bidirectional water flow effect
CMY / CTO: CMY + CTO for linear infinity color mixing

Electrical
Power input, nominal: AC 100-240V 50/60Hz
Max. Power consumption: 1111W
Power supply unit: Auto-ranging electronic SMPS
Main fuse: 250V/15A

Control and programming
Control channels (DMX): 37/33/52
Protocol: DMX-512 RDM
Display: OLED display
16-bit control: Dimmer,  colors, CMY , CTO, focus, zoom, pan/tilt, gobo indexing & rotation, rotating gobo wheel positioning,framing

Dynamic effects
Pan/Tilt movement: 540˚/270˚
Iris: 5-100% linear adjustment, with built-in macros
Strobe: Independent electronic strobe, 1-25Hz
Dimmer: Electronic linear dimming 0-100%
Zoom: Motorized
Built-in macros: Color, Iris


Physical / Installation
Weight: 55 kg(121 lbs.)
IP rating: IP66
Material: Aluminium, steel, plastic
Mounting points: Four quarter-turn locking points + attachment points for safety wire
Minimum distance to combustible materials: 0.5 mtr(1.64 ft.)
Minimum distance to illuminated surfaces: 5 mtr(16.4 ft.)

Thermal
Operating range: 5˚F - 113˚F(-15˚C - 45˚C)
Startup range: -13˚F - 113˚F(-25˚C - 45˚C)
Storage range: -40˚F - 140˚F(-40˚C - 60˚C)
Cooling: Heat pipe radiator, temperature controls fan heat dissipation intelligently
Humidity: ≤85%

Connections
AC power: Seetronic power socket
DMX data input/output: Seetronic 3-pin XLR  (in/out)

Certification and Safety
EMC:EN55103-1:2009,EN55103-2:2009,EN61000-3-2:2006+A2:2009,EN61000-3-3:2013,GB/T 17743-2007, GB 17625.1-2012
Safety: EN 60598-2-17:1989/A2:1991,GB 7000.1-2015, GB 7000.217-2008

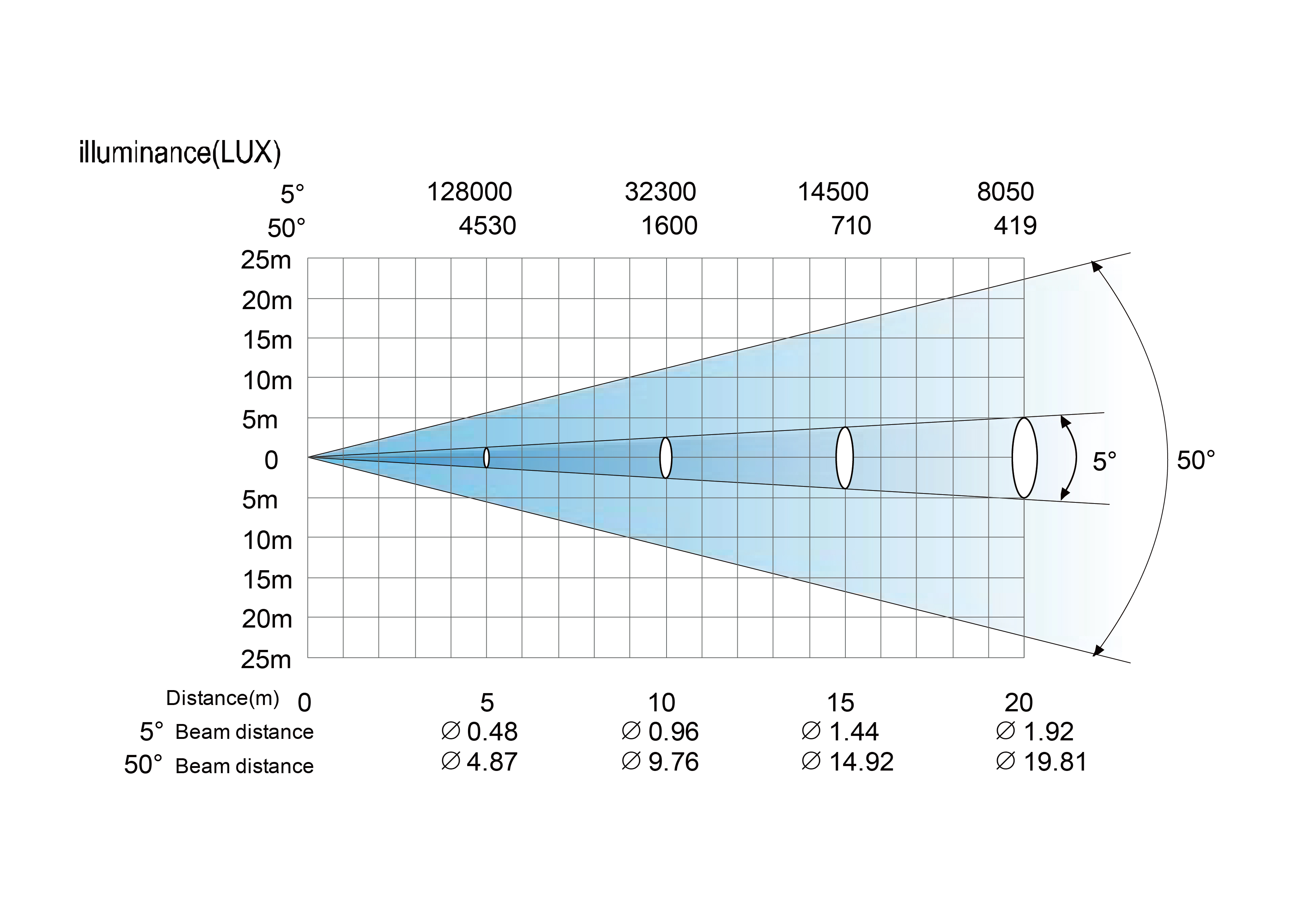

Photometric Diagram

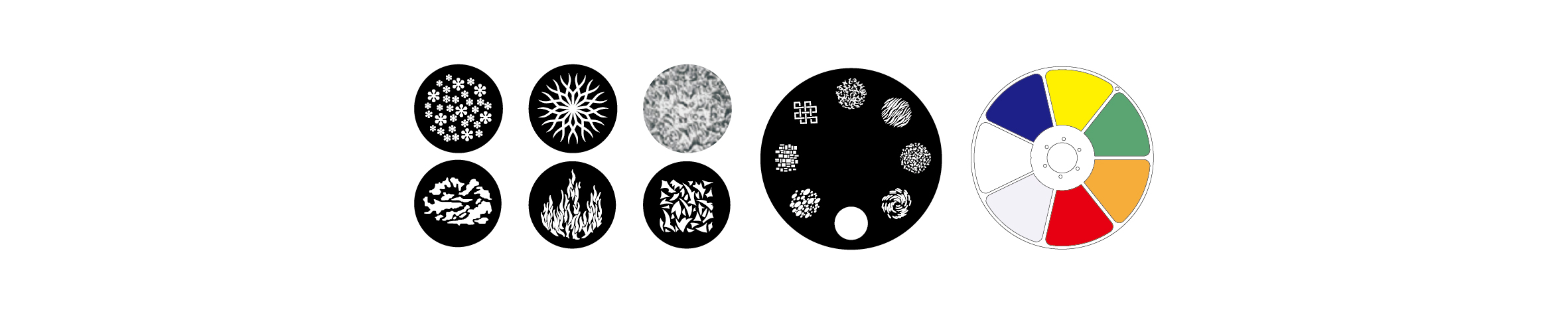

Gobos & Colours

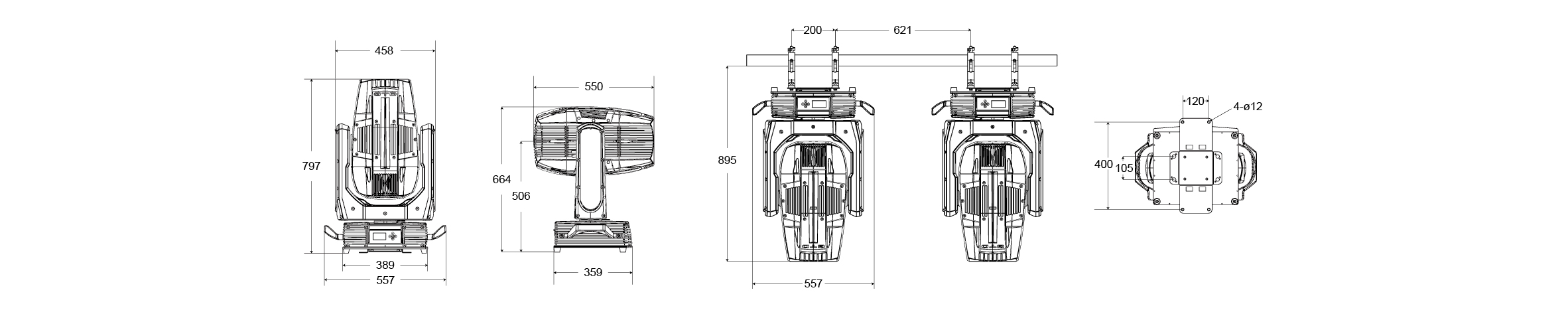

Exterior Dimensions
