OPTICAL
• Light source: PHILIPS MSD Platinum 19 RLL 420W
• Expected life: 4,000 hours
• Color temperature: 7,500K
• Zoom: Beam 1.6°
• Focus: High-precision glass lens, electronic linear high-definition focusing
GOBO
• Static gobo: 9 gobos+2 animation gobos+ 3 open, CW/CCW rotation, variable speed
COLOR
• Color wheel: 16 colors, CW/CCW rainbow effect, split color and linear control
• CMY / CTO: CMY linear infinity color mixing, macros
• CTO linear color temperature adjustment(7,500K-2,700K)
ELECTRICAL
• Power input: AC 200V-240V 50/60Hz
• Max power consumption: 610W
• Power supply unit: IP67 power socket
• DMX data in/out: Waterproof 3-pin Seetronic XLR
CONTROL/PROGRAMMING
• Control channel: 16/13/17
• Protocol: DMX-512, RDM
• Display: LCD back-lit
DYNAMIC EFFECTS
• Pan/Tilt: 540°/270°, 16-bit control and Automatic return correction
• Strobe: 1-20Hz, synchronized and asynchronous, pulse effects
• Dimmer: 0-100% linear mechanical dimmer
• Prism: 2 independent prism wheels
• Frost: 1 frost filter
PHYSICAL
• Weight: 26kg
• IP Rating: IP66
OTHERS
• Power setting: Internal battery, able to control the LCD display without power connection
• Sleep mode: When disconnect DMX, the fixture returns to sleep mode automatically
• Transmission: DMX signal, update software by DMX
• Cooling: Active fan
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

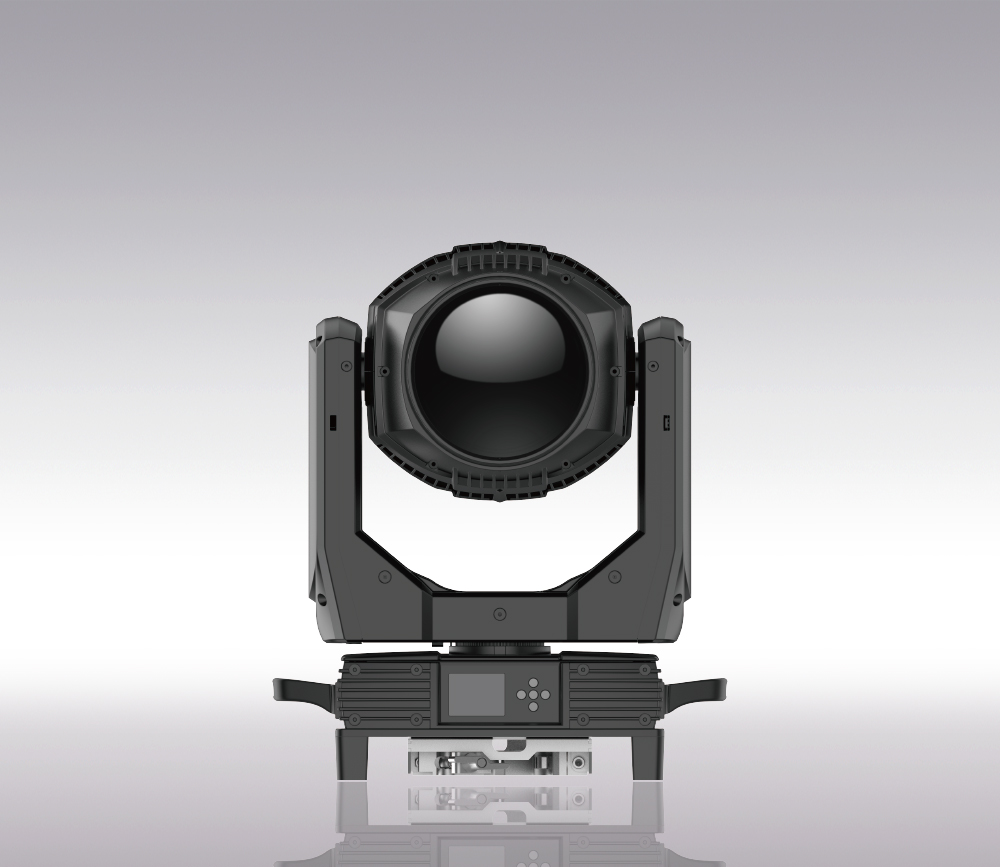

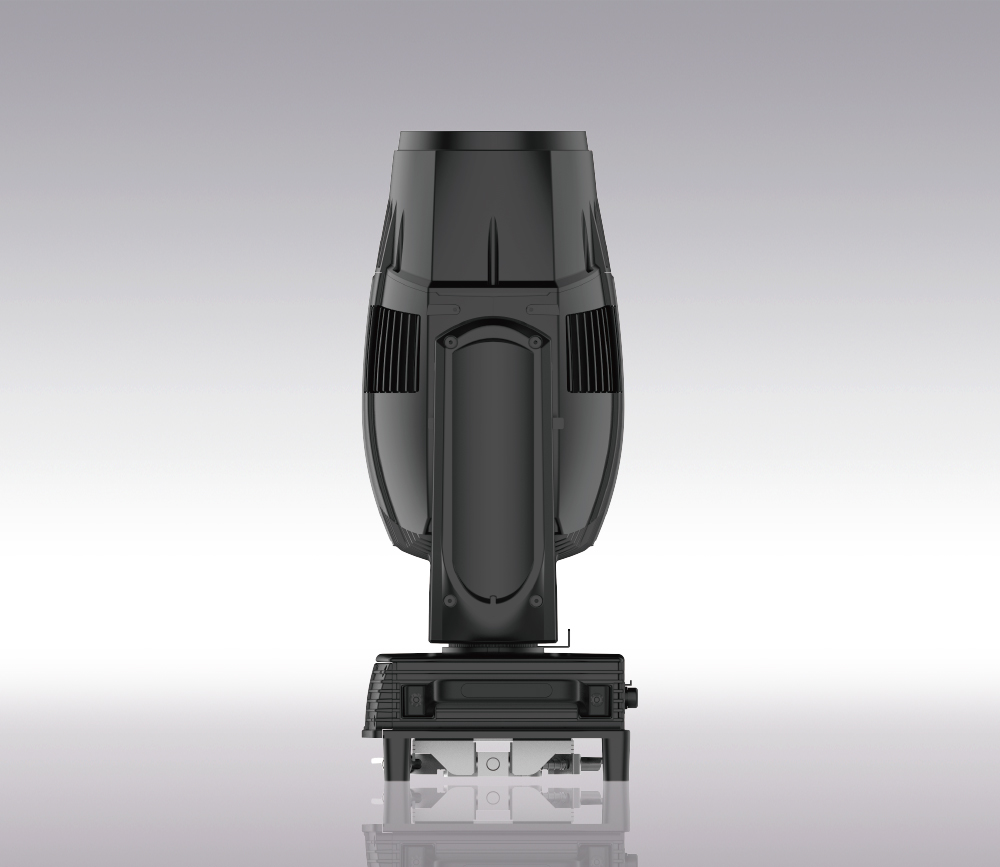

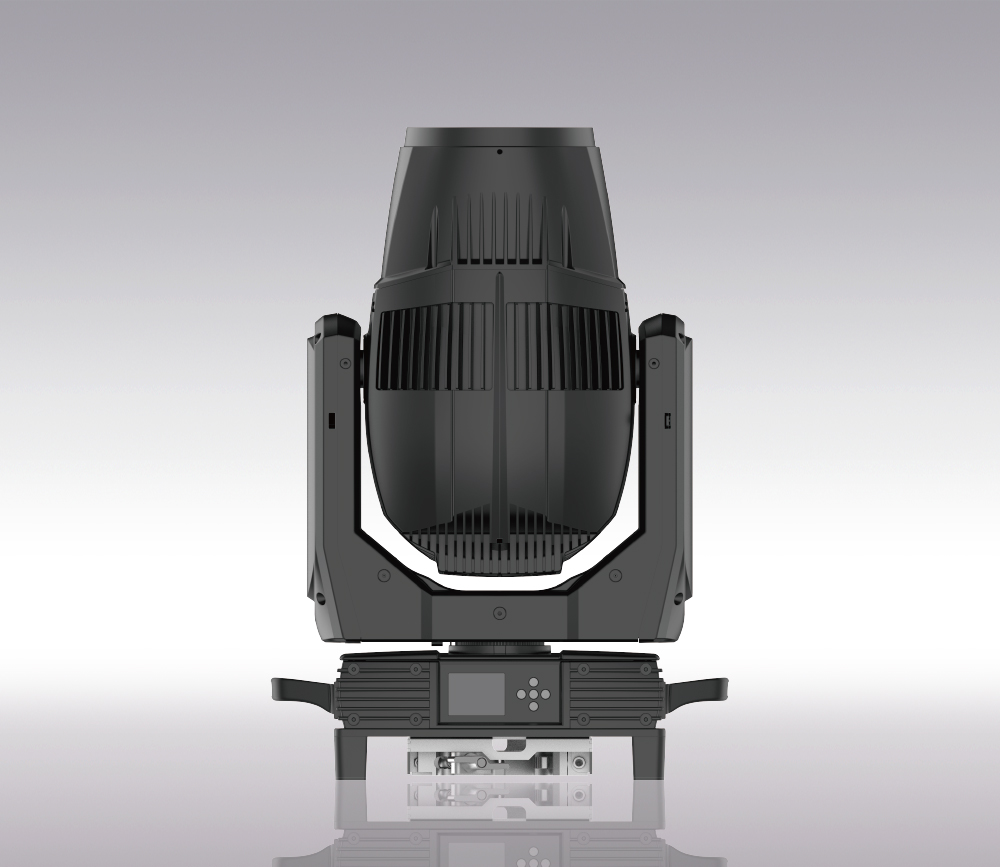

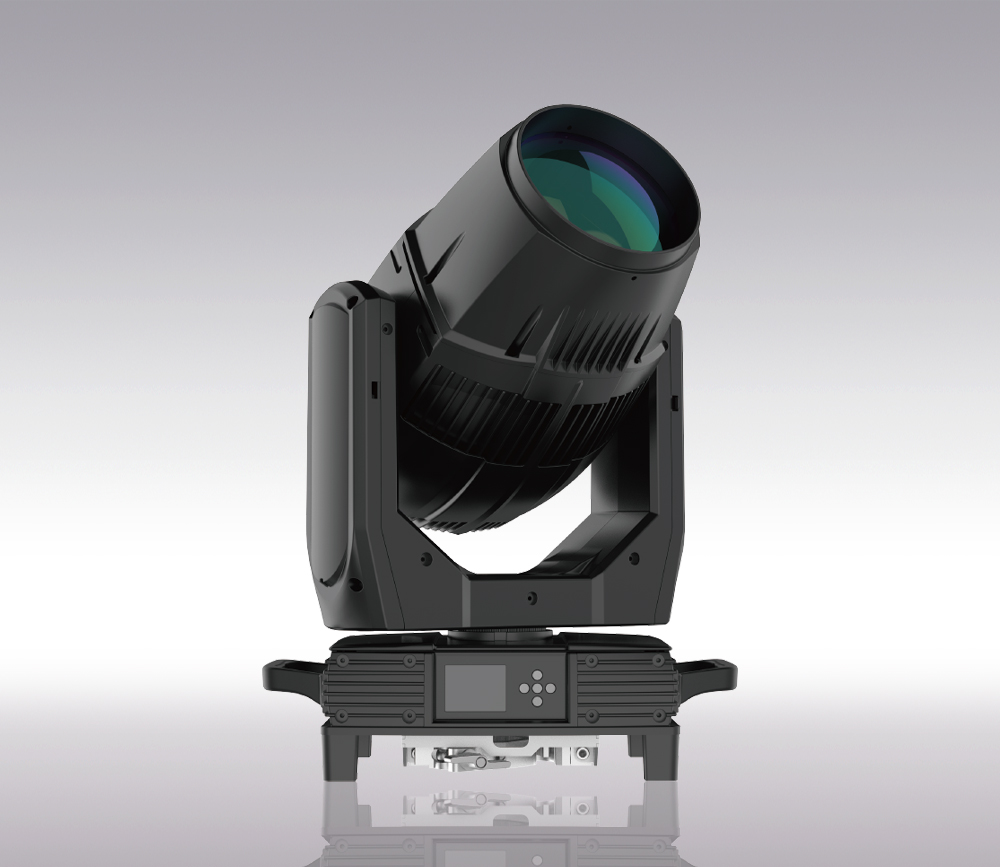

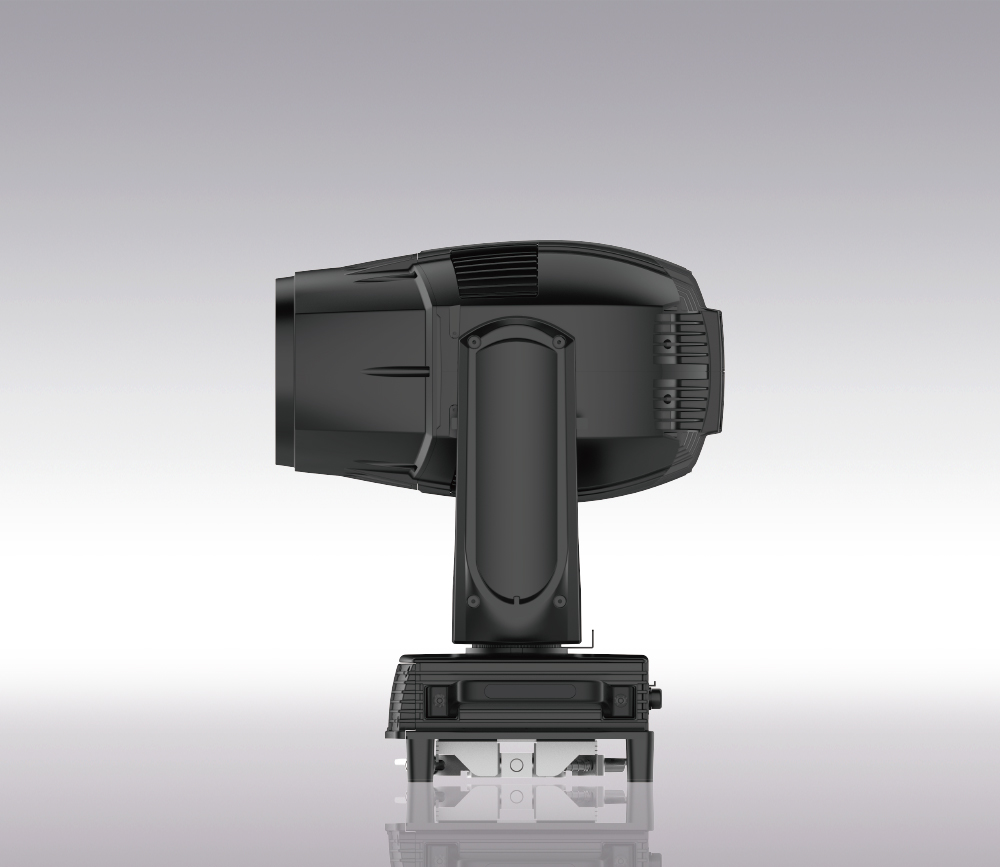

GTD-F4C II BEAM
