OPTICAL
· Light Source: LED 1000W(customized))
·Expected life: 20,000 hours
·Color temperature: 6,500K
·Focus: High-precision glass lenses, electronic linear HD focus
·Zoom:5°-55° · CRI: Ra>70, Ra>90(optional adding high CRI filter)
FRAMING
·One set of full process framing system, 4 sets of blades fast movement to form geometric graphics; The graphics can be different shapes and different size
GOBO
·Rotating gobo: 1 rotating gobo wheel with 7 optional glass gobo, variable speed shaking and two-way rotating, 16-bit fine tuning
·Static gobo: static gobowheel with gobos+white, variable speed shaking and two-way rotating
COLOR
CMY: CMY linear infinity color mixing, macros CTO linear color temperature adjustment(6500K-2700K) Color wheel: 1 wheel with 6 color filters, realize bidirectional rainbow effect, half color and linear adjustment
ELECTRICAL
·Input: AC 100V-240V 50/60Hz
·Power supply unit IP67 plug in/out
·DMX data in/out: IP67 3-pin seetronic XLR
CONTROL/PROGRAMMING
· Control channel: 37/34/53
· Protocol: DMX512, RDM
· Display: LCD
DYNAMIC EFFECTS
·Pan/tilt: 540/270°, 16-bit control and automatic return correction·Iris: 5-100% linear adjustment, multi-macro function effects
·Strobe: 1-25Hz,1-25Hz/s fast strobe with pulse/asynchronous/synchronous strobe effect
·Dimmer: 0-100 linearlectrodimming rdimmigmodesbuitilectableionrequired
·Prism: 1 4-facet prism+ 1 linear prism· Frost: 1 independent frost plate
·Animation wheel: 1 bi-directional rotating wheel
PHYSICAL
·Weight: 34kg
·IP rating: IP66
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

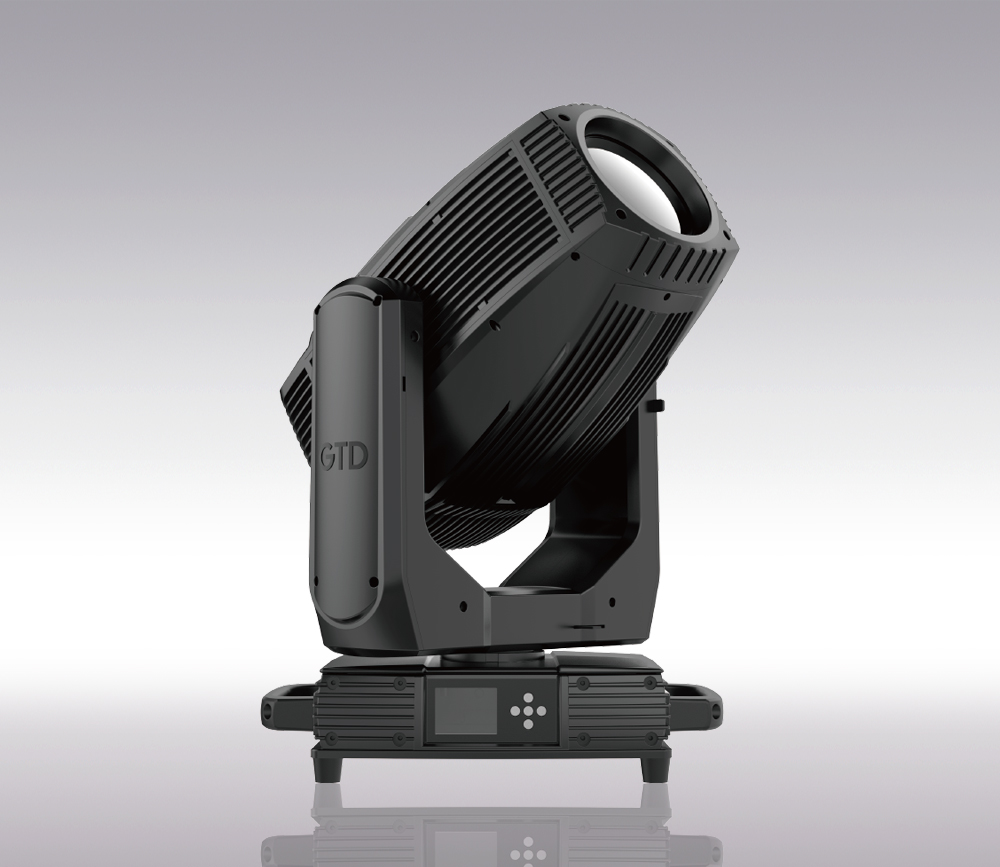

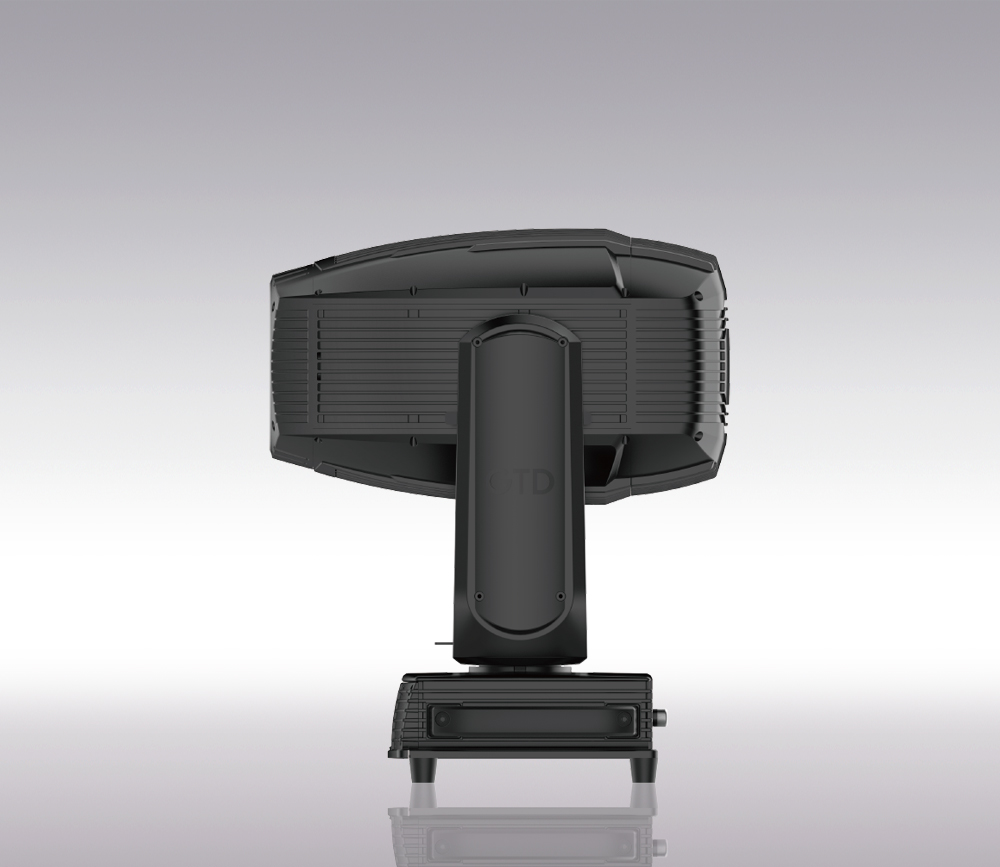

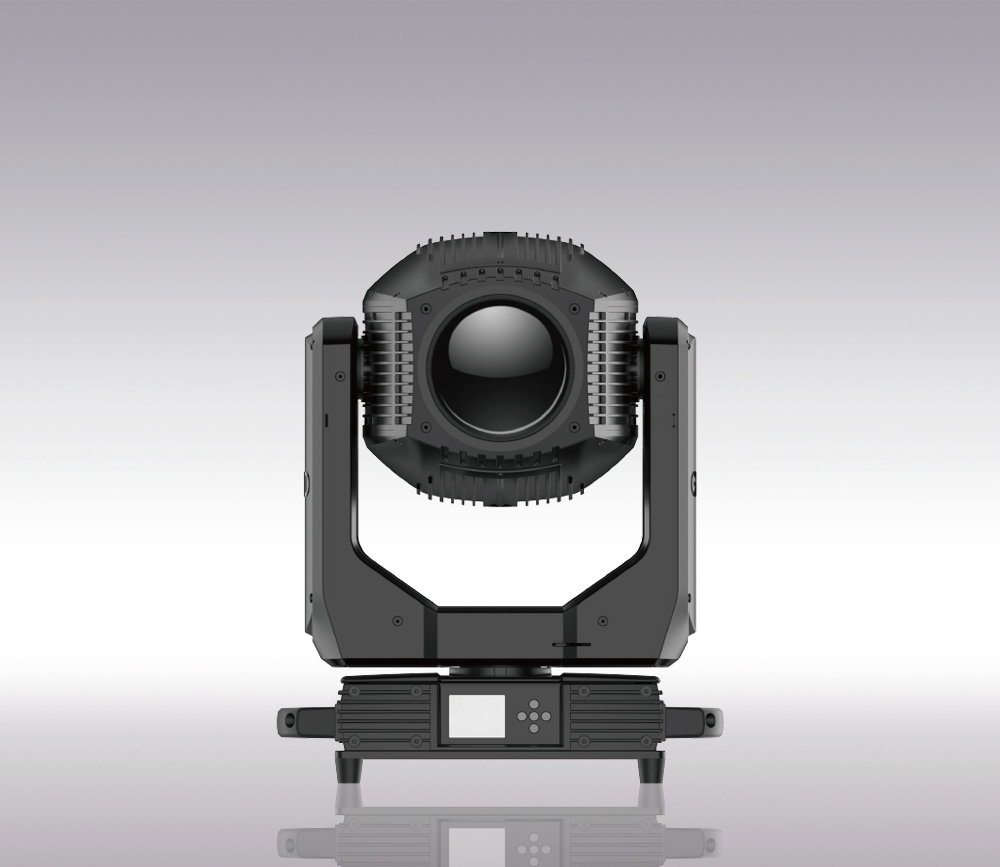

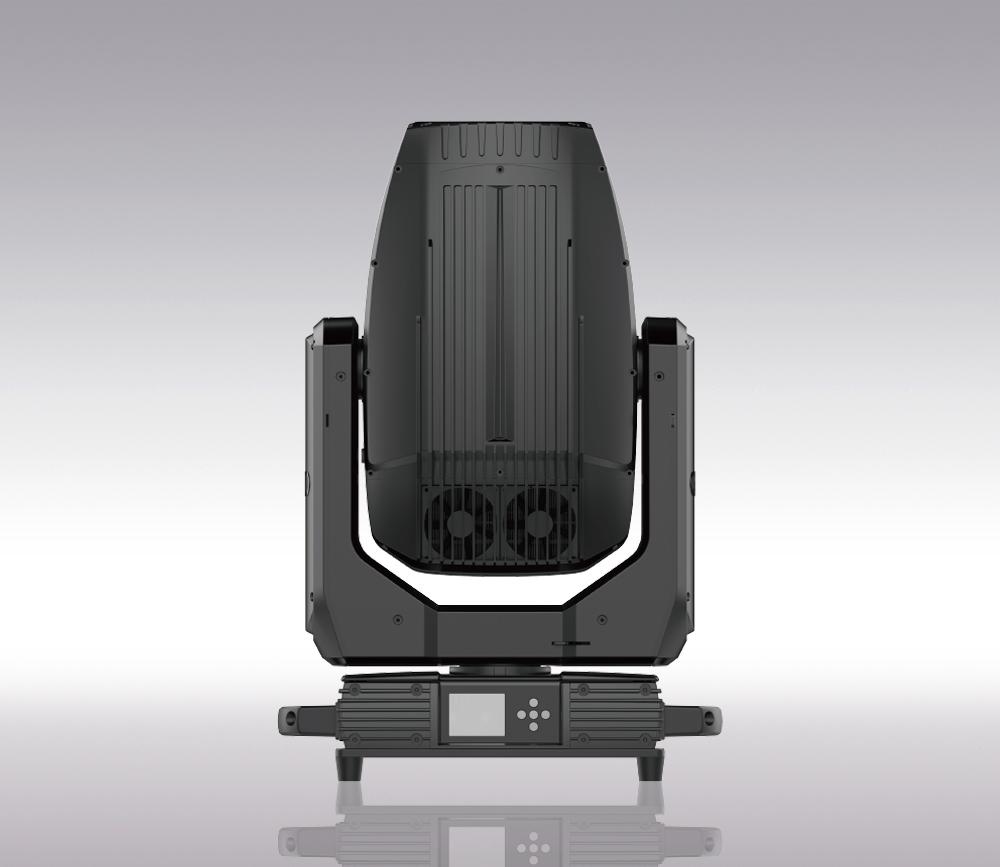

GTD-F10 II BSWP
