OPTICAL
• Light source: 3W (14 red, 14 green, 14 blue, 12 white) 54 LED
• Expected average lifetime: 50000 hours
• Angle: 20°
• Color temperature: 3200K - 7200K linear regulation
COLOR
• RGBW linear mixed color, built-in macro function
ELECTRICAL
• Power input, nominal: AC 220-240V 50/60Hz
• AC power: water proof plugs (in/out)
• DMX data input/output: 3 pin XLR
CONTROL/PROGRAMMING
• Control channels (DMX): 14/9
• Protocol: DMX-512
• Display: LED
DYNAMIC EFFECTS
• Strobe: 1-25Hz, synchronized, pulse effects
• Dimmer: 0-100% electronic linear dimming
PHYSICAL / INSTALLATION
• Weight: 7.5kg
• IP rating: IP67
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

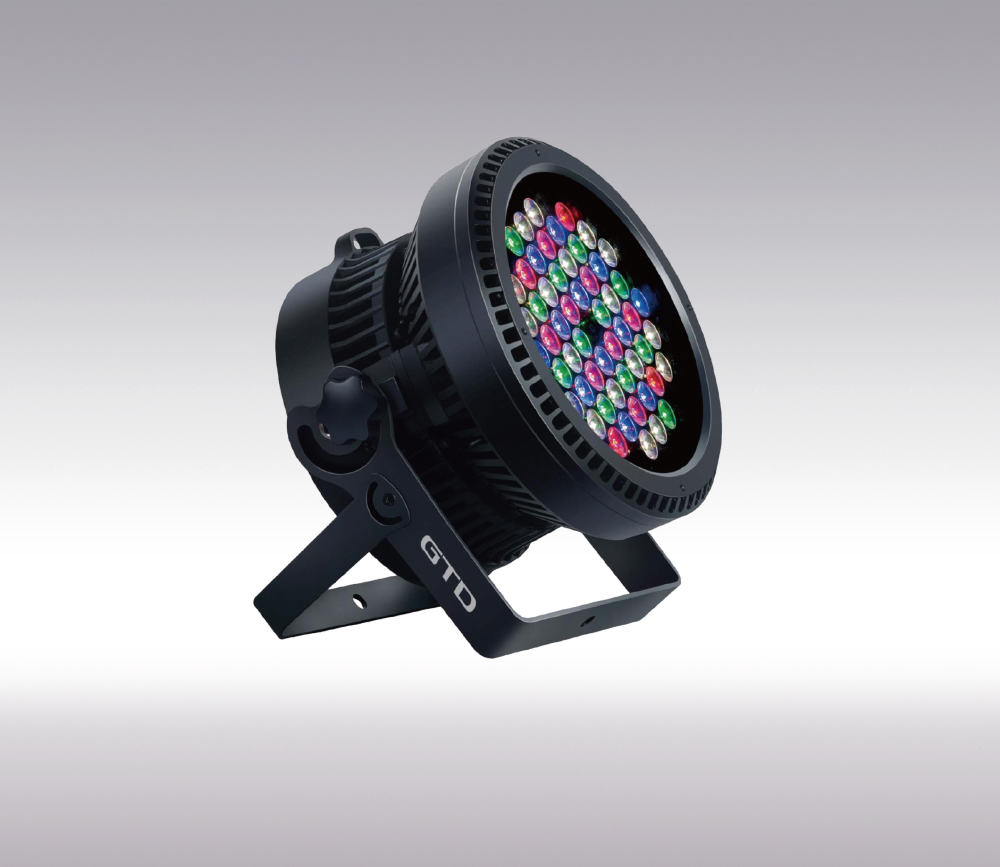

GTD-L354GP
