OPTICAL
• Light source: RGB 864PCS0.2W, Cool White 96PCS2W
• Expected life: 50,000 hours
• Beam angle: 110°
ELECTRICAL
• Input: AC 100V-240V 50/60Hz
• Maximum Power: 370W
• DMX data in/out: IP65 3-pin XLR
• Power supply unit IP65 plug in/out
CONTROL/PROGRAMMING
• Control channel: 4/16/48
• Protocol: DMX512, RDM
• Display: LCD
DYNAMIC EFFECTS
• Strobe: 1-25Hz/s fast strobe with pulse/asynchronous/synchronous strobe effect
• Dimmer: 0-100% linear electronic dimming
• Macro Function: RGB light source is divided into 12 zones with built-in effect macro functions. Cool white light source is divided into 12 zones with built-in effect macro functions.
PHYSICAL
• Weight: 8.5kg
• IP rating: IP65
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

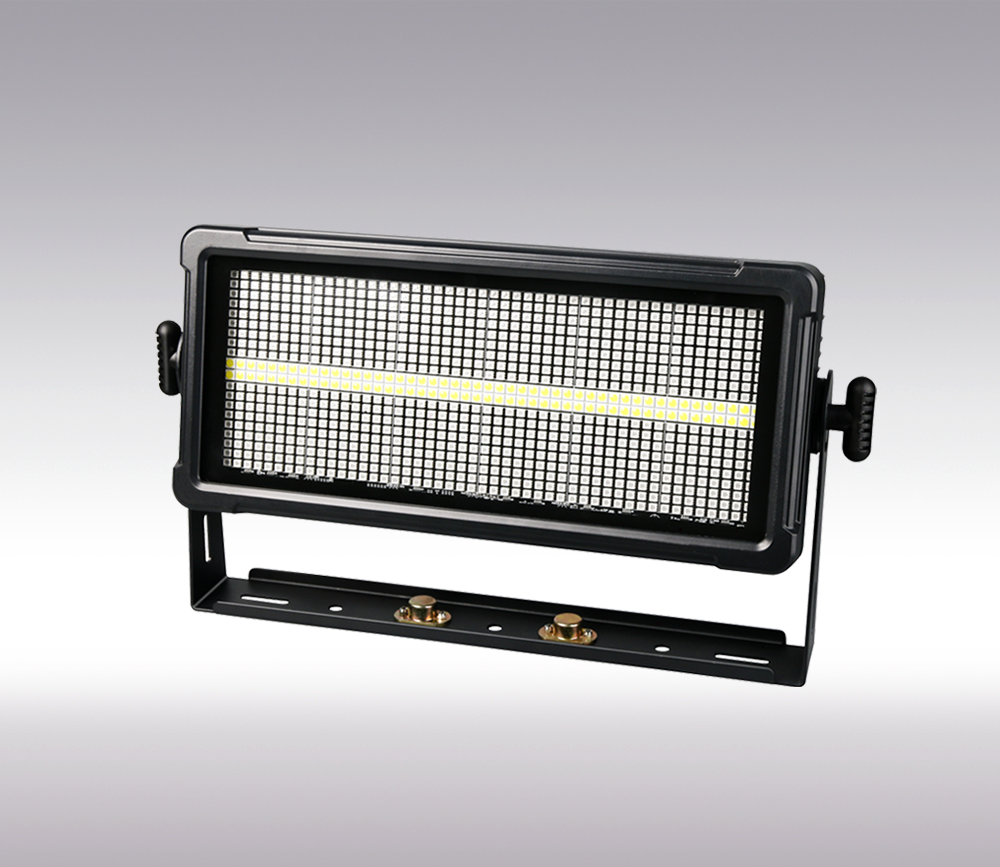

GTD-FX400-S
