OPTICAL
• Lightsource: 6W(RGB 3-in-1) 54LED
• Expected average lifetime: 50000 hours
• Beam angle: 35°(50% peak angle), 41°(10% peak angle)
• Color temperature: 3200K - 7200K linear regulation
ELECTRICAL
• Power input, nominal: AC200-240V 50/60Hz
• Max. Power consumption: 300W
• Power supply unit: Auto-ranging electronic SMPS
CONTROL/PROGRAMMING
• Control channels(DMX): 11/7
• Protocol: DMX-512
• Display: LED
• 16-bit control: Dimmer
DYNAMIC EFFECTS
• Pan/Tilt movement: Manually adjustable
• Strobe: 1-25Hz, synchronized, pulse effects
• Dimmer: 0-100%, 16-bit, electronic linear dimming
• Built-in macros: Color
PHYSICAL / INSTALLATION
• Weight: 7 kg(15.4 lbs.)
• IP rating: IP67
• Material: Aluminium, steel, plastic
• Mounting points: 12mm holes for G-Clamp
• Minimum distance to combustible materials: 0.5 mtr(1.64ft.)
• Minimum distance to illuminated surfaces: 1 mtr(3.28ft.)
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

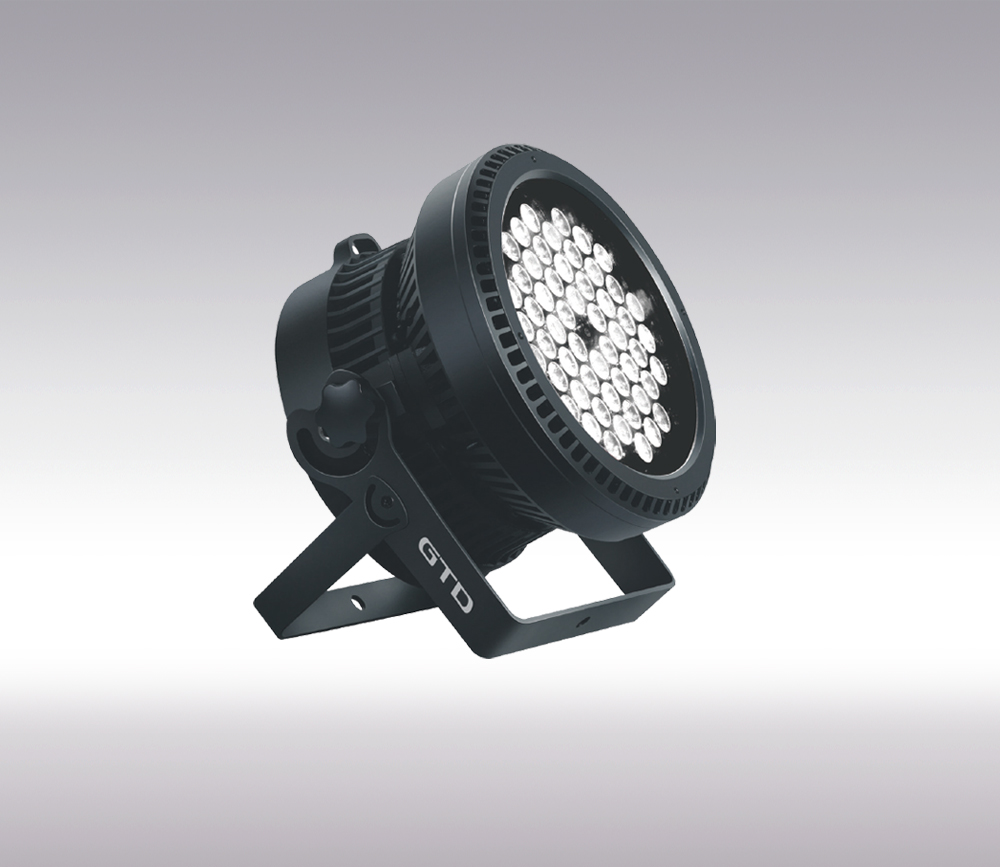

GTD-L654GP
