OPTICAL
• Light Source: LED 400W
• Expected lifetime: 20,000 hours
• Color temperature: 3,200K/5,600K optional
• Zoom: 15°- 45°
• Ra≥95
ELECTRICAL
• Input: AC 100V-240V 50/60Hz
• Max. Consumption: 400W
• DMX data in/out: XLR 3-pin
CONTROL/PROGRAMMING
• Control channels (DMX): 1CH
• Protocol: DMX512
• Display: LCD display
DYNAMIC EFFECTS
• Dimmer: 0-100%, electronic linear dimming
PHYSICAL
• Weight: 12.5kg
• IP rating: IP20
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

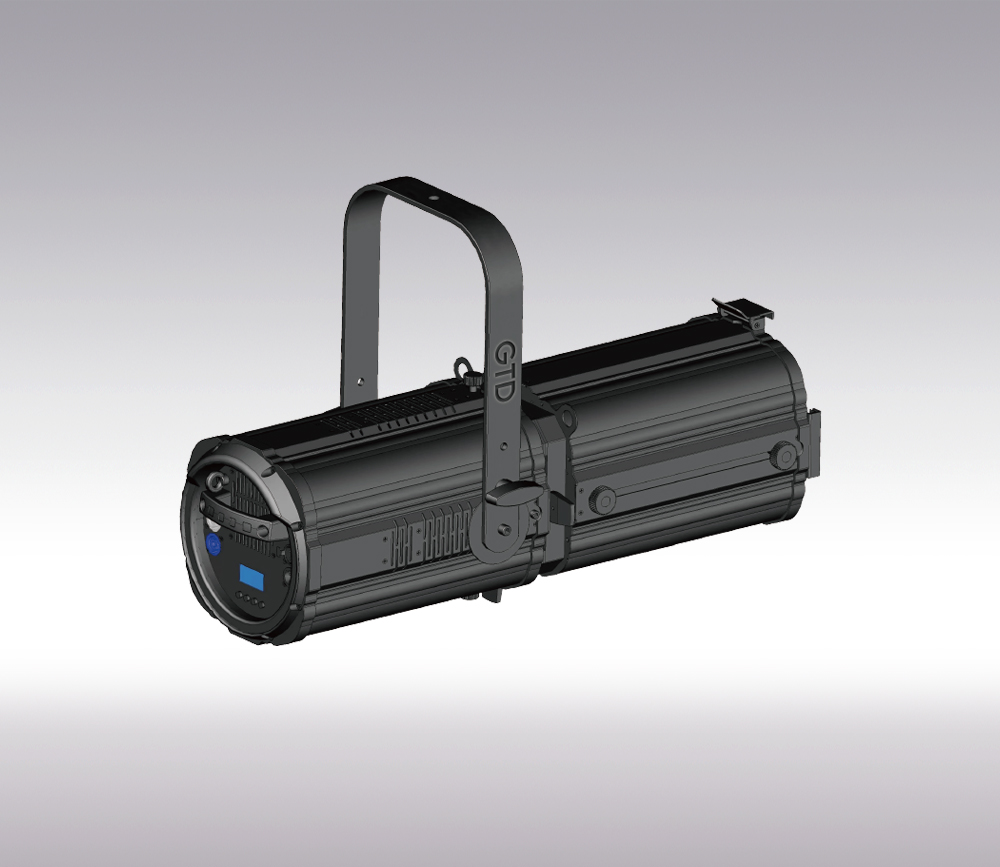

GTD-LZ400G PF
