OPTICAL
• Light Source: RGB 672LEDs 0.2W, CW 112LEDs 3W
• Rated Lifetime: 50,000 hours
• Beam Angle: 110°
ELECTRICAL
• Input: AC 100–240V, 50/60Hz
• Max Power: 420W
• DMX Data In/Out: IP65 3-pin XLR input/output
• Power Input: IP65 power input/output
CONTROL/PROGRAMMING
• Control Channels: 7 / 15 / 17 / 21 / 33 / 39 / 65 / 68 / 70 / 112 / 117
• Transmission Protocol: DMX512, RDM
• Display: LCD
DYNAMIC EFFECTS
• Strobe: 1–25Hz high-speed strobe with pulse, synchronous and asynchronous effects
• Dimming: 0–100% electronic linear dimming
• Macro Function: RGB source divided into 32 zones with built-in effect macros; Cool White source divided into 16 zones with built-in effect macros
PHYSICAL
• Weight: 8 kg
• IP rating: IP65
Technical Specification
Photometric Diagram
Gobos & Colours
Exterior Dimensions
Accessories
Downloads
Product Video

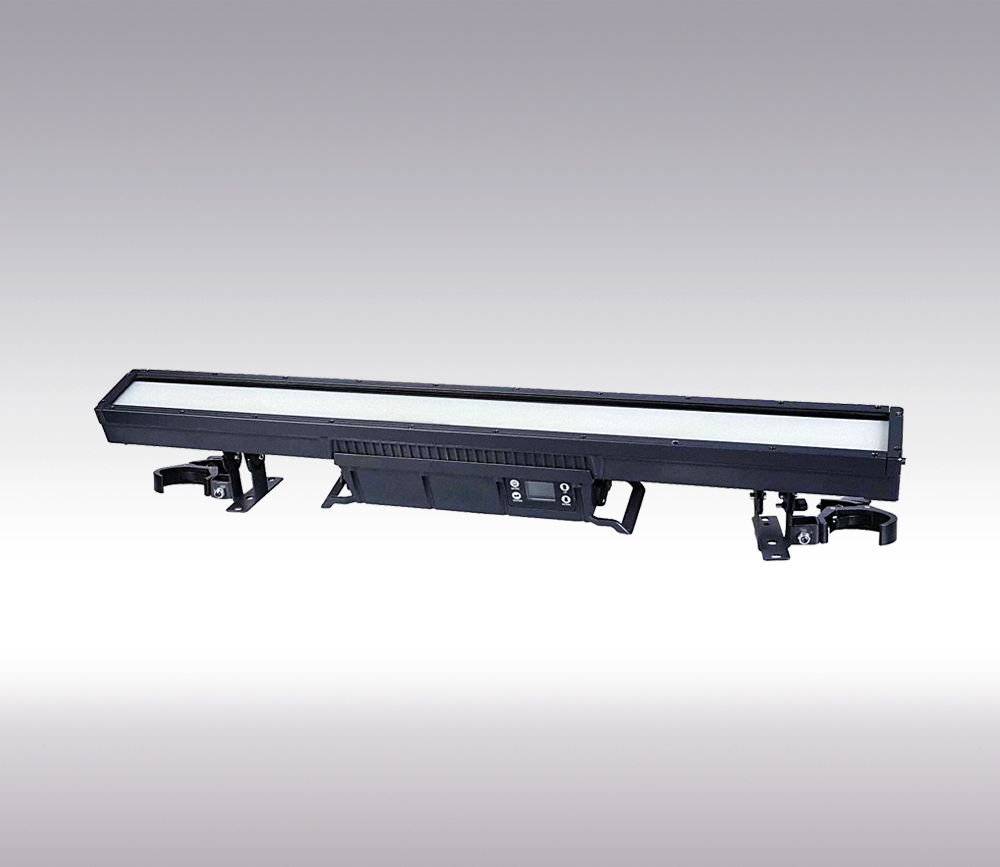

GTD-FX500-BAR
